7.3.7 Channel Divider

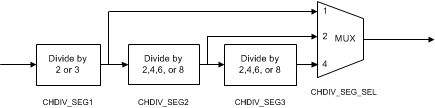

GUID-109C492C-14B0-429D-9537-B65020784F37-low.gifFigure 7-2 Channel Divider Diagram

To go below the VCO lower bound, the channel divider must be used. The channel divider consists of three programmable dividers controlled by the registers CHDIV_SEG1, CHDIV_SEG2, CHDIV_SEG3. The Multiplexer (programmed with register CHDIV_SEG_SEL) selects which divider is included in the path. The minimum division is 2 while the maximum division is 192. Un-used dividers can be powered down to save current consumption. The entire channel divider can be powered down with register CHDIV_EN = 0 or selectively setting registers CHDIV_SEG1_EN = 0, CHDIV_SEG2_EN = 0 ,CHDIV_SEG3_EN = 0. Unused buffers may also be powered down with registers CHDIV_DISTA_EN and CHDIV_DIST_EN. There are restrictions on the maximum VCO frequency when channel divider is engaged.

Table 7-4 Channel Divider vs VCO Frequency
OUTPUT FREQUENCY (MHz) CHDIV SEGMENT TOTAL DIVISION VCO FREQUENCY (MHz)
MIN MAX SEG1 SEG2 SEG3 MIN MAX
1775 3550 2 1 1 2 3550 7100
1184 2200 3 1 1 3 3552 6600
888 1184 2 2 1 4 3552 4736
592 888 3 2 1 6 3552 5328
444 592 2 4 1 8 3552 4736
296 444 2 6 1 12 3552 5328
222 296 2 8 1 16 3552 4736
148 222 3 8 1 24 3552 5328
111 148 2 8 2 32 3552 4736
99 111 3 6 2 36 3564 3996
74 99 3 8 2 48 3552 4752
56 74 2 8 4 64 3584 4736
37 56 2 8 6 96 3552 5376
28 37 2 8 8 128 3584 4736
20 28 3 8 8 192 3840 5376
