Timing Requirements

3.15 V ≤ VCC ≤ 3.45 V, –40°C ≤ TA ≤ 85°C, except as specified. Typical values are at VCC = 3.3 V, TA = 25°C
MINTYPMAXUNIT
MICROWIRE TIMING
tESClock to enable low timeSee Figure 6-15ns
tCSData to clock setup time2ns
tCHData to clock hold time2ns
tCWHClock pulse width high5ns
tCWLClock pulse width low5ns
tCESEnable to clock setup time5ns
tEWHEnable pulse width high2ns

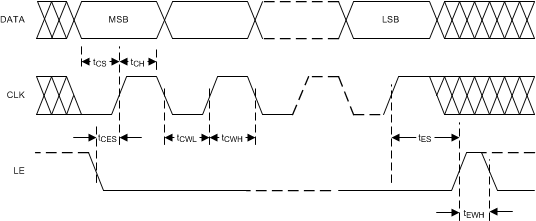

GUID-CEF5D3DB-68A5-4336-817D-4736872E6910-low.gifFigure 6-1 Serial Data Input Timing Diagram

There are several considerations for programming:

  • A slew rate of at least 30 V/µs is recommended for the CLK, DATA, LE
  • The DATA is clocked into a shift register on each rising edge of the CLK signal. On the rising edge of the last CLK signal, the data is sent from the shift registers to a register bank
  • The LE pin may be held high after programming and clock pulses are ignored
  • When CLK and DATA lines are shared between devices, TI recommends diving down the voltage to the CLK, DATA, and LE pins closer to the minimum voltage. This provides better noise immunity
  • If the CLK and DATA lines are toggled while the VCO is in lock, as is sometimes the case when these lines are shared with other parts, the phase noise may be degraded during the time of this programming
