8.2 Typical Application

Figure 8-1 shows the minimum required application circuit for a 1.8-V output. Figure 8-2 shows a full featured application circuit. Please refer to Figure 8-1 and Figure 8-2 during the following design procedures.

GUID-DDD37785-D795-4996-B781-80C80B37691F-low.gif Figure 8-1 LMZ20501 Typical Application VOUT = 1.8 V

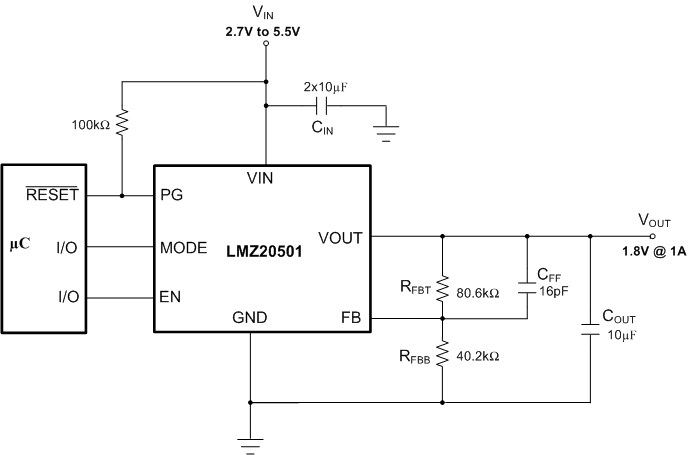

GUID-DD41036E-5D37-457E-9EC3-8991180E6CBC-low.gif Figure 8-2 LMZ20501 Full Featured Application
