6.9 Typical Characteristics (VIN = 24 V)

The typical characteristic data has been developed from actual products tested at 25°C. This data is considered typical for the device.

VIN = 24 V

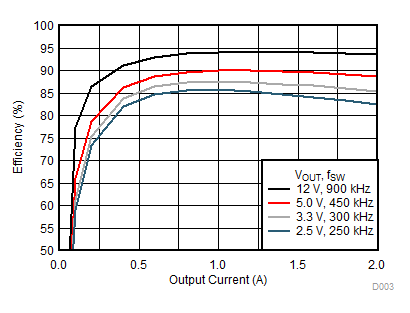

Figure 6-9 Efficiency vs Output Current
VIN = 24 V COUT = 4 × 22 µF, 25 V, 1210 ceramic

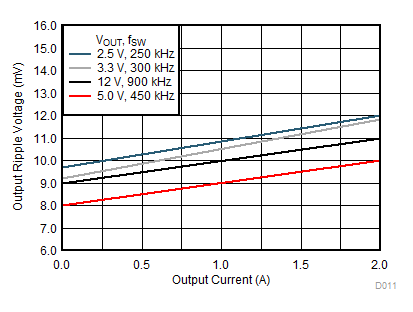

Figure 6-11 Voltage Ripple vs Output Current
VIN = 24 V VOUT = 12 V fSW = 900 kHz
Figure 6-13 Safe Operating Area
VIN = 24 V
Figure 6-10 Power Dissipation vs Output Current
VIN = 24 V VOUT = 5 V fSW = 450 kHz
Figure 6-12 Safe Operating Area
