7.7 Typical Characteristics

LP5030 LP5036 D005-RIREF.gif

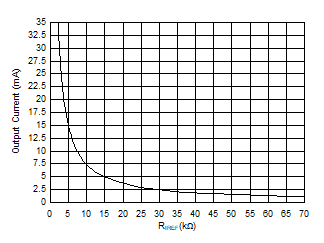

Figure 2. Output Current Target vs RIREF
LP5030 LP5036 D004-CURRENTTEMP5V.gif
VVCC = 5 V
Figure 4. Output Current vs Ambient Temperature
LP5030 LP5036 D002-C2C5V.gif
VVCC = 5 V
Figure 6. Channel-to-Channel Accuracy
LP5030 LP5036 D007-VSAT5V.gif
VVCC = 5 V
Figure 8. OUT Pin Voltage vs Current
LP5030 LP5036 D003-CURRENTTEMP.gif
VVCC = 3.3 V
Figure 3. Output Current vs Ambient Temperature
LP5030 LP5036 D001-C2C3V3.gif
VVCC = 3.3 V
Figure 5. Channel-to-Channel Accuracy
LP5030 LP5036 D006-VSAT3V3.gif
VVCC = 3.3 V
Figure 7. OUT Pin Voltage vs Current
