7.6 Timing Requirements

over operating ambient temperature range (-40°C < TA< 85°C) (unless otherwise noted)
MIN TYP MAX UNIT
ƒOSC Internal oscillator frequency(1) 15 MHz
tPSM Power save mode deglitch time(1) 20 30 40 ms
tEN_H EN first rising edge until first I2C access(1) 500 µs
tEN_L EN first falling edge until first I2C reset(1) 3 µs
ƒSCL I2C clock frequency(1) 400 kHz
1 Hold time (repeated) START condition(1) 0.6 µs
2 Clock low time(1) 1.3 µs
3 Clock high time(1) 600 ns
4 Setup time for a repeated START condition(1) 600 ns
5 Data hold time(1) 0 ns
6 Data setup time(1) 100 ns
7 Rise time of SDA and SCL(1) 20 + 0.1 Cb ns
8 Fall time of SDA and SCL(1) 15 + 0.1 Cb ns
9 Setup time for STOP condition(1) 600 ns
10 Bus free time between a STOP and a START condition(1) 1.3 µs
Cb Capacitive load parameter for each bus line Load of 1 pF corresponds to one nanosecond(1). 10 200 pF
(1) Specified by design

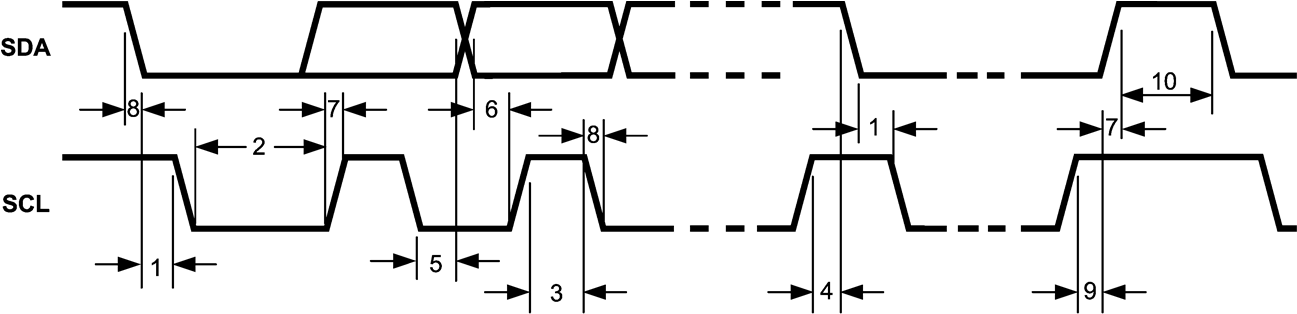

LP5030 LP5036 Timing-Parameters.gifFigure 1. I2C Timing Parameters
