8.2.3 Application Curves

Measurements are done using typical application set up with connections shown in Section 8.2. Graphs may not reflect the OTP default settings. Unless otherwise specified: V(VIN_Bx) = V(VIN_LDOx) = V(VANA) = 3.7 V, VOUT_Bx = 1 V, VOUT_LDOx = 1 V, TA = 25°C, L = 0.47 µH (TOKO DFE252012PD-R47M), COUT_BUCK = 22 µF / phase, and CPOL_BUCK = 22 µF, COUT_LDO = 1 µF.

VOUT = 1.8 V
Figure 8-4 Buck Efficiency in PFM/PWM and Forced PWM Mode (Single-Phase Output)
VIN = 3.3 V
Figure 8-6 Buck Efficiency in Forced PWM Mode (Single-Phase Output)
VIN = 5 V
Figure 8-8 Buck Efficiency in Forced PWM Mode (Single-Phase Output)
VOUT = 1 V
Figure 8-10 Buck Output Voltage vs Load Current in Forced PWM Mode (Single-Phase Output)
VOUT = 1 V
Figure 8-12 Buck Output Voltage vs Load Current in PFM/PWM Mode (Single-Phase Output)
VOUT = 1 V Load = 1 A
Figure 8-14 Buck Output Voltage vs Input Voltage in PWM Mode (Single-Phase Output)
Load = 1 A (PWM) and 0.1 A (PFM)

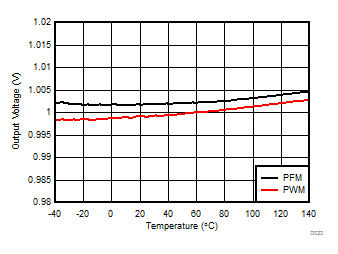

Figure 8-16 Buck Output Voltage vs Temperature
Slew-rate = 10 mV/µs ILOAD = 0 A VOUT = 1 V
Figure 8-18 Buck Start-Up With EN1, Forced PWM Mode (Single-Phase Output)
Slew-rate = 10 mV/µs RLOAD = 1 Ω VOUT = 1 V
Figure 8-20 Buck Start-Up with EN1, Forced PWM Mode (Single-Phase Output)
Slew-rate = 10 mV/µs RLOAD = 1 Ω VOUT = 1 V
Figure 8-22 Buck Shutdown With EN1, Forced PWM Mode (Single-Phase Output)
IOUT = 10 mA
Figure 8-24 Buck Output Voltage Ripple, PFM Mode (Single-Phase Output)
IOUT = 200 mA
Figure 8-26 Buck Output Voltage Ripple, Forced PWM Mode (Single-Phase Output)
GUID-B27EE337-A3BE-40FC-96A0-9A941EE4AC40-low.pngFigure 8-28 Buck Transient From PFM-to-PWM Mode (Single-Phase Output)
GUID-120FC01E-0FAF-429E-B9AA-DDFDE0CBEBBD-low.pngFigure 8-30 Buck Transient From PWM-to-PFM Mode (Single-Phase Output)
GUID-988F2AB3-E6EB-4774-B02F-8F5EA1620CAB-low.pngFigure 8-32 Buck Transient From 1-Phase to 2-Phase Operation (Dual-Phase Output)
IOUT = 0.1 A → 2 A → 0.1 A TR = TF = 400 ns
Figure 8-34 Buck Transient Load Step Response, AUTO Mode (Single-Phase Output)
IOUT = 0.1 A → 2 A → 0.1 A TR = TF = 400 ns
Figure 8-36 Buck Transient Load Step Response, Forced PWM Mode (Single-Phase Output)
GUID-79B7EA11-1FAD-485E-BB71-DAF699BE88F4-low.gifFigure 8-38 Buck VOUT Transition from 0.6 V to 1.4 V With Different Slew Rate Settings
GUID-5368822F-DF1B-4F3C-97AF-1FFBA896DCA7-low.pngFigure 8-40 Buck Start-Up With Short on Output (Single-Phase Output)
VOUT = 1 V
Figure 8-42 LDO Output Voltage vs Load Current
VOUT = 1 V Load = 200 mA
Figure 8-44 LDO Output Voltage vs Temperature
RLOAD = 3.3 Ω VOUT = 1 V
Figure 8-46 LDO Start-Up
IOUT = 0 A → 0.3 A → 0 A TR = TF = 1 µs
Figure 8-48 LDO Transient Load Step Response
GUID-A3CB394A-0C80-47A9-B922-3053AE9A2CBD-low.pngFigure 8-50 LDO VOUT Transition from 1.2 V to 1.8 V
VOUT = 1.8 V
Figure 8-5 Buck Efficiency in PFM/PWM and Forced PWM Mode (Dual-Phase Output)
VIN = 3.3 V
Figure 8-7 Buck Efficiency in Forced PWM Mode (Dual-Phase Output)
VIN = 5 V
Figure 8-9 Buck Efficiency in Forced PWM Mode (Dual-Phase Output)
VOUT = 1 V
Figure 8-11 Buck Output Voltage vs Load Current in Forced PWM Mode (Dual-Phase Output)
VOUT = 1 V
Figure 8-13 Buck Output Voltage vs Load Current in PFM/PWM Mode (Dual-Phase Output)
VOUT = 1 V Load = 1 A
Figure 8-15 Buck Output Voltage vs Input Voltage in PWM Mode (Dual-Phase Output)
VIN = 3.7 V
Figure 8-17 Buck Phase Adding and Shedding vs Load Current (Dual-Phase Output)
Slew-rate = 10 mV/µs ILOAD = 0 A VOUT = 1 V
Figure 8-19 Buck Start-Up With EN1, Forced PWM Mode (Dual-Phase Output)
Slew-rate = 10 mV/µs RLOAD = 0.5 Ω VOUT = 1 V
Figure 8-21 Buck Start-Up with EN1, Forced PWM Mode (Dual-Phase Output)
Slew-rate = 10 mV/µs RLOAD = 0.5 Ω VOUT = 1 V
Figure 8-23 Buck Shutdown With EN1, Forced PWM Mode (Dual-Phase Output)
IOUT = 10 mA
Figure 8-25 Buck Output Voltage Ripple, PFM Mode (Dual-Phase Output)
IOUT = 200 mA
Figure 8-27 Buck Output Voltage Ripple, Forced PWM Mode (Dual-Phase Output)
GUID-CB0E6335-FD8E-4569-B69D-94925F725D4F-low.pngFigure 8-29 Buck Transient From PFM-to-PWM Mode (Dual-Phase Output)
GUID-2D2347FD-47CA-48C4-95E1-09577DAE6B52-low.pngFigure 8-31 Buck Transient From PWM-to-PFM Mode (Dual-Phase Output)
GUID-C0ECEB78-6103-4DB5-BA7F-4430CF6BB1FB-low.pngFigure 8-33 Buck Transient From 2-Phase to 1-Phase Operation (Dual-Phase Output)
IOUT = 0.1 A → 4 A → 0.1 A TR = TF = 400 ns
Figure 8-35 Buck Transient Load Step Response, AUTO Mode (Dual-Phase Output)
IOUT = 0.1 A → 4 A → 0.1 A TR = TF = 400 ns
Figure 8-37 Buck Transient Load Step Response, Forced PWM Mode (Dual-Phase Output)
GUID-55F0D1E5-4CFA-4286-8A79-D67C7DD84D90-low.gifFigure 8-39 Buck VOUT Transition from 1.4 V to 0.6 V With Different Slew Rate Settings
GUID-00657C6A-BE91-41E2-AAFB-80584DAB2921-low.pngFigure 8-41 Buck Start-up With Short on Output (Dual-Phase Output)
VOUT = 1 V Load = 200 mA
Figure 8-43 LDO Output Voltage vs Input Voltage
ILOAD = 0 A VOUT = 1 V
Figure 8-45 LDO Start-Up
ILOAD = 0 A VOUT = 1 V
Figure 8-47 LDO Shutdown
GUID-537B55A0-0522-4DEA-B170-87A8D3A31DFA-low.pngFigure 8-49 LDO VOUT Transition from 1.8 V to 1.2 V
Start-up delay is 500 µs
Figure 8-51 LDO Start-Up With Short on Output
