7.3.1.2 Dual-Phase Operation and Phase-Adding/Shedding

Under heavy load conditions, the dual-phase converter switches both channel 180° apart. As a result, the dual-phase converter has an effective ripple frequency two times greater than the switching frequency of a single phase. However, the parallel operation decreases the efficiency at light load conditions. In order to overcome this operational inefficiency, the LP8732xx-Q1 can change the number of active phases to optimize efficiency for the variations of the load. This is called phase adding and shedding. The concept is shown in Figure 7-2.

The converter can be forced to dual-phase operation by the BUCK0_FPWM_MP bit in the BUCK0_CTRL_1 register. If the regulator operates in forced dual-phase mode the forced PWM operation is automatically used. If the dual-phase operation is not forced, the number of phases are added and shedded automatically to follow the required output current.

GUID-619ED9FB-548F-4446-980E-2F1C9680C19E-low.gifFigure 7-2 Multiphase Buck Converter Efficiency vs Number of Phases. All Converters in PWM mode. (UPDATE) (1)

Interleaving switching action of the converters and channels in a 2-phase configuration is shown in Figure 7-3.

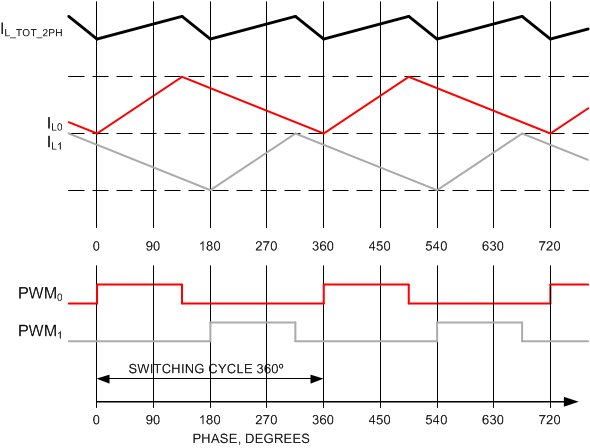

GUID-837B2D51-91F5-4294-AE25-45FF9F6EB3B8-low.gif Figure 7-3 PWM Timings and Inductor Current Waveforms in 2-phase Configuration. (UPDATE) (2)
1. Graph is not in scale and is for illustrative purposes only.
2. Graph is not in scale and is for illustrative purposes only.
