Measurements are done using typical application set up with connections shown in Figure 8-1. Graphs may not reflect the OTP default settings. Unless otherwise specified: V(VIN_Bx) = V(VIN_LDOx) = V(VANA) = 3.7 V, VOUT_Bx = 1 V, VOUT_LDOx = 1 V, TA = 25°C, L = 0.47 µH (TOKO DFE252012PD-R47M), COUT_BUCK = 22 µF , and CPOL_BUCK = 22 µF, COUT_LDO = 1 µF.
Figure 8-2 Buck

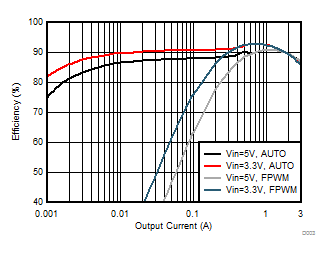

Efficiency in PFM/PWM and Forced PWM Mode
Figure 8-4 Buck
Efficiency in Forced PWM Mode
Figure 8-6 Buck

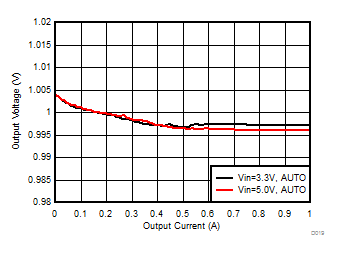

Output Voltage vs Load Current in PFM/PWM Mode ![Buck
Output Voltage vs Temperature GUID-C83F71FD-69A3-464F-B8EC-371D65889284-low.gif](/ods/images/SNVSAU6A/GUID-C83F71FD-69A3-464F-B8EC-371D65889284-low.gif)
Load
= 1 A (PWM) and 0.1 A (PFM) |
|
Figure 8-8 Buck
Output Voltage vs Temperature![Buck
Start-Up with EN1, Forced PWM Mode GUID-460716F1-4889-46A6-9643-401170BEC388-low.png](/ods/images/SNVSAU6A/GUID-460716F1-4889-46A6-9643-401170BEC388-low.png)
Slew-rate = 10 mV/µs |
RLOAD = 1
Ω |
VOUT = 1
V |
Figure 8-10 Buck
Start-Up with EN1, Forced PWM Mode
Figure 8-12 Buck
Output Voltage Ripple, PFM Mode
Figure 8-14 Buck
Transient From PFM-to-PWM Mode ![Buck
Transient Load Step Response, AUTO Mode GUID-7AD0E40D-FBFB-4244-A7DB-D9F1EE1DE925-low.png](/ods/images/SNVSAU6A/GUID-7AD0E40D-FBFB-4244-A7DB-D9F1EE1DE925-low.png)
IOUT = 0.1 A → 2 A
→ 0.1 A |
TR =
TF = 400 ns |
|
Figure 8-16 Buck
Transient Load Step Response, AUTO Mode
Figure 8-18 Buck
VOUT Transition from 0.6 V to 1.4 V With Different Slew Rate
Settings
Figure 8-20 Buck
Start-Up With Short on Output
Figure 8-22 LDO
Output Voltage vs Input Voltage
Figure 8-24 LDO
Start-Up
Figure 8-26 LDO
Shutdown
Figure 8-28 LDO
VOUT Transition from 1.8 V to 1.2 V
Figure 8-30 LDO
Start-Up With Short on Output
Figure 8-3 Buck
Efficiency in Forced PWM Mode
Figure 8-5 Buck
Output Voltage vs Load Current in Forced PWM Mode
Figure 8-7 Buck
Output Voltage vs Input Voltage in PWM Mode ![Buck
Start-Up With EN1, Forced PWM Mode GUID-32501F3C-A7C6-4542-838A-6A74CBC1EF87-low.png](/ods/images/SNVSAU6A/GUID-32501F3C-A7C6-4542-838A-6A74CBC1EF87-low.png)
Slew-rate = 10 mV/µs |
ILOAD = 0
A |
VOUT = 1
V |
Figure 8-9 Buck
Start-Up With EN1, Forced PWM Mode ![Buck
Shutdown With EN1, Forced PWM Mode GUID-EEACC0FF-D96E-4EE6-8E6A-5F90C0CAE721-low.png](/ods/images/SNVSAU6A/GUID-EEACC0FF-D96E-4EE6-8E6A-5F90C0CAE721-low.png)
Slew-rate = 10 mV/µs |
RLOAD = 1
Ω |
VOUT = 1
V |
Figure 8-11 Buck
Shutdown With EN1, Forced PWM Mode
Figure 8-13 Buck
Output Voltage Ripple, Forced PWM Mode
Figure 8-15 Buck
Transient From PWM-to-PFM Mode ![Buck
Transient Load Step Response, Forced PWM Mode GUID-BD49EB62-BD2F-47EC-BE9D-23494DA42E9A-low.png](/ods/images/SNVSAU6A/GUID-BD49EB62-BD2F-47EC-BE9D-23494DA42E9A-low.png)
IOUT = 0.1 A → 2 A
→ 0.1 A |
TR =
TF = 400 ns |
|
Figure 8-17 Buck
Transient Load Step Response, Forced PWM Mode
Figure 8-19 Buck

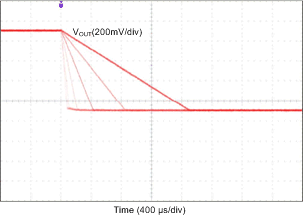

VOUT Transition from 1.4 V to 0.6 V With Different Slew Rate
Settings
Figure 8-21 LDO

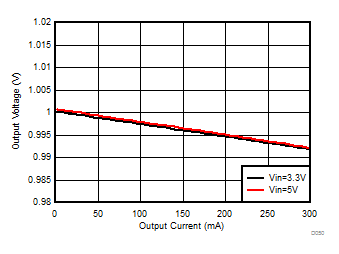

Output Voltage vs Load Current
Figure 8-23 LDO

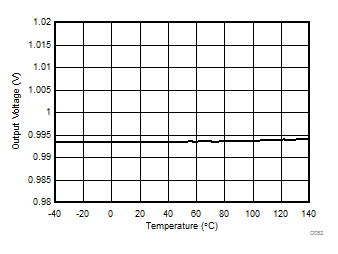

Output Voltage vs Temperature
Figure 8-25 LDO
Start-Up![LDO
Transient Load Step Response GUID-36F38F8C-DB8B-4E13-B514-F1C4E65D4BC2-low.png](/ods/images/SNVSAU6A/GUID-36F38F8C-DB8B-4E13-B514-F1C4E65D4BC2-low.png)
IOUT = 0 A → 0.3 A → 0 A |
TR =
TF = 1 µs |
Figure 8-27 LDO
Transient Load Step Response
Figure 8-29 LDO
VOUT Transition from 1.2 V to 1.8 V
