The buck regulator in MCF8315C is primarily designed to support low inductance of 47µH and 22µH. A 47µH inductor allows the buck regulator to operate up to 170mA load current support, whereas applications requiring current up to 20mA can use a 22µH inductor which saves component size.

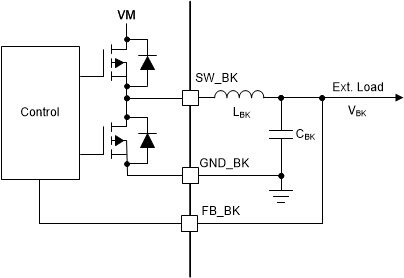

Figure 6-3 shows the connection of buck regulator in inductor mode.
