7.3.3.2 Buck in Resistor mode

If the external load requirement is less than 10-mA, the inductor can be replaced with a resistor. In resistor mode the power is dissipated across the external resistor and the efficiency is lower than buck in inductor mode.

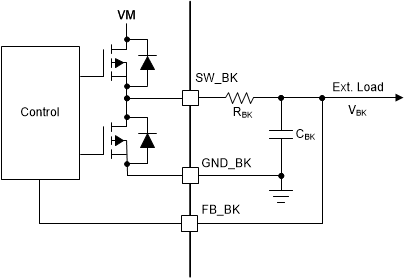

Figure 7-3 shows the connection of buck in resistor mode.

GUID-AD30A52F-B0EC-422B-A758-6E5770D175FB-low.gif Figure 7-3 Buck (Resistor Mode)
