6.3.11.1.3 Mixed Modulation

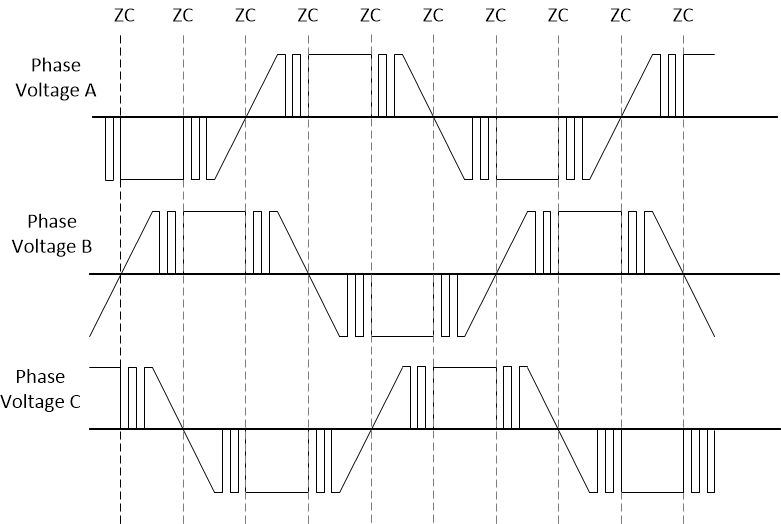

Mixed modulation can be configured by setting PWM_MODUL to 10b. In mixed modulation, MCT8316A-Q1 dynamically switches between high and low-side modulation (see Figure 6-27). The switching losses are distributed evenly amongst the high and low-side MOSFETs in mixed modulation mode.

MCT8316A-Q1 120o commutation in Mixed Modulation ModeFigure 6-27 120o commutation in Mixed Modulation Mode
