9.10.1 Port P1 (P1.0 to P1.7), Input/Output With Schmitt Trigger

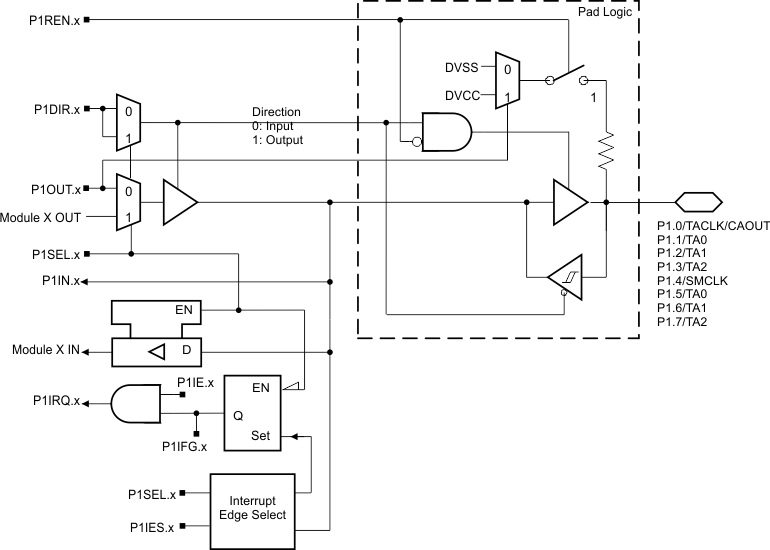

Figure 9-6 shows the port diagram. Table 9-15 summarizes the selection of the pin function.

GUID-CF59D221-FA8F-48F5-B875-2A7AEE1D2A52-low.gifFigure 9-6 Port P1 (P1.0 to P1.7) Diagram
Table 9-15 Port P1 (P1.0 to P1.7) Pin Functions
PIN NAME (P1.x)xFUNCTIONCONTROL BITS OR SIGNALS
P1DIR.xP1SEL.x
P1.0/TACLK/CAOUT0P1.0 (I/O)0 = Input
1 = Output		0
Timer_A3.TACLK01
CAOUT11
P1.1/TA01P1.1 (I/O)0 = Input
1 = Output		0
Timer_A3.CCI0A01
Timer_A3.TA011
P1.2/TA12P1.2 (I/O)0 = Input
1 = Output		0
Timer_A3.CCI1A01
Timer_A3.TA111
P1.3/TA23P1.3 (I/O)0 = Input
1 = Output		0
Timer_A3.CCI2A01
Timer_A3.TA211
P1.4/SMCLK4P1.4 (I/O)0 = Input
1 = Output		0
SMCLK11
P1.5/TA05P1.5 (I/O)0 = Input
1 = Output		0
Timer_A3.TA011
P1.6/TA16P1.6 (I/O)0 = Input
1 = Output		0
Timer_A3.TA111
P1.7/TA27P1.7 (I/O)0 = Input
1 = Output		0
Timer_A3.TA211
