8.12.7.6 eUSCI (I2C Mode)

over recommended ranges of supply voltage and operating free-air temperature (unless otherwise noted) (see Figure 8-17)
PARAMETER TEST CONDITIONS VCC MIN TYP MAX UNIT
feUSCI eUSCI input clock frequency Internal: SMCLK, MODCLK
External: UCLK
Duty cycle = 50% ±10%		 16 MHz
fSCL SCL clock frequency 2 V, 3 V 0 400 kHz
tHD,STA Hold time (repeated) START fSCL = 100 kHz 2 V, 3 V 4.0 µs
fSCL > 100 kHz 0.6
tSU,STA Setup time for a repeated START fSCL = 100 kHz 2 V, 3 V 4.7 µs
fSCL > 100 kHz 0.6
tHD,DAT Data hold time 2 V, 3 V 0 ns
tSU,DAT Data setup time 2 V, 3 V 250 ns
tSU,STO Setup time for STOP fSCL = 100 kHz 2 V, 3 V 4.0 µs
fSCL > 100 kHz 0.6
tSP Pulse duration of spikes suppressed by input filter UCGLITx = 0 2 V, 3 V 50 600 ns
UCGLITx = 1 25 300
UCGLITx = 2 12.5 150
UCGLITx = 3 6.3 75
tTIMEOUT Clock low time-out UCCLTOx = 1 2 V, 3 V 27 ms
UCCLTOx = 2 30
UCCLTOx = 3 33

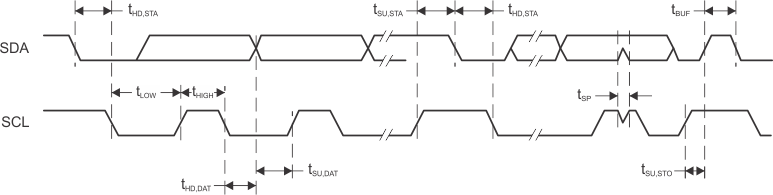

GUID-2E67879A-3EAD-448F-BA42-1AD349CCD4F8-low.gif Figure 8-17 I2C Mode Timing
