8.12.4.3 Digital I/O Typical Characteristics

DVCC = 3 V

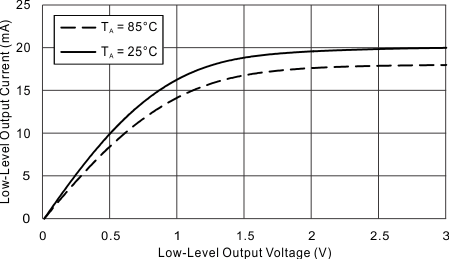

Figure 8-6 Typical Low-Level Output Current vs Low-Level Output Voltage
DVCC = 3 V
Figure 8-8 Typical High-Level Output Current vs High-Level Output Voltage
DVCC = 2 V

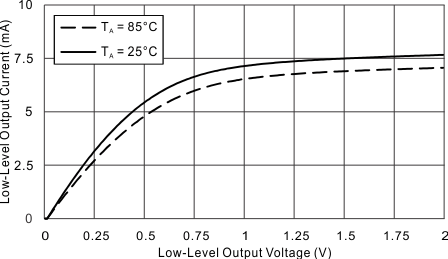

Figure 8-7 Typical Low-Level Output Current vs Low-Level Output Voltage
DVCC = 2 V
Figure 8-9 Typical High-Level Output Current vs High-Level Output Voltage
