9.9.13.2 Port P2 Input/Output With Schmitt Trigger

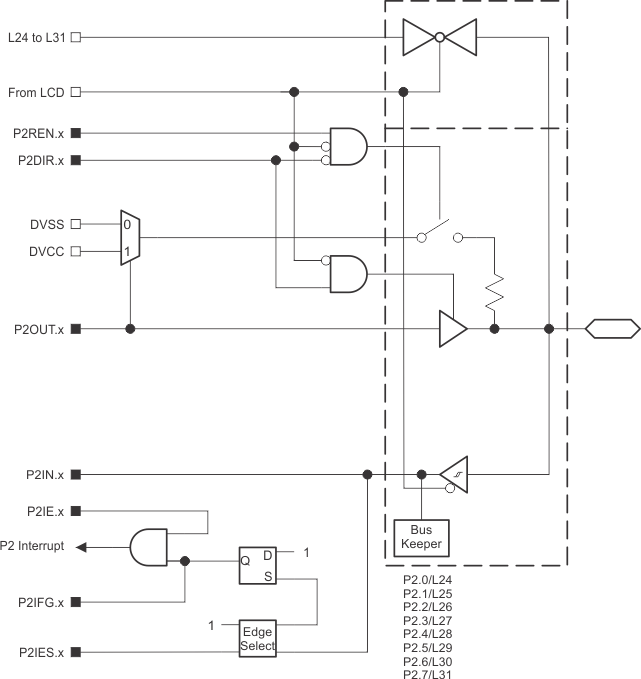

Figure 9-4 shows the port schematic. Table 9-15 summarizes the selection of the pin functions.

GUID-FE88E89C-E2C3-4269-B0AE-27BC54FECF35-low.gifFigure 9-4 Port P2 Input/Output With Schmitt Trigger
Table 9-15 Port P2 Pin Functions
PIN NAME (P2.x)xFUNCTIONCONTROL BITS AND SIGNALS(1)
P2DIR.xLCDSy
P2.0/L240P2.0 (I/O)I: 0; O: 10
L24X1 (y = 24)
P2.1/L251P2.1 (I/O)I: 0; O: 10
L25X1 (y = 25)
P2.2/L262P2.2 (I/O)I: 0; O: 10
L26X1 (y = 26)
P2.3/L273P2.3 (I/O)I: 0; O: 10
L27X1 (y = 27)
P2.4/L284P2.4 (I/O)I: 0; O: 10
L28X1 (y = 28)
P2.5/L295P2.5 (I/O)I: 0; O: 10
L29X1 (y = 29)
P2.6/L306P2.6 (I/O)I: 0; O: 10
L30X1 (y = 30)
P2.7/L317P2.7 (I/O)I: 0; O: 10
L31X1 (y = 31)
(1) X= don't care
