9.9.13.3 Port P3 Input/Output With Schmitt Trigger

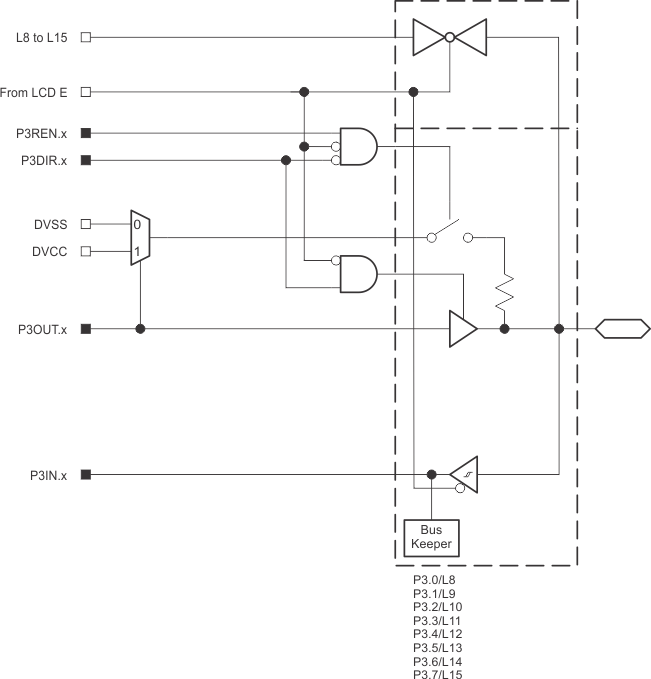

Figure 9-5 shows the port schematic. Table 9-16 summarizes the selection of the pin functions.

GUID-47C3A888-378E-4366-9821-C2B4A9F57ECA-low.gifFigure 9-5 Port P3 Input/Output With Schmitt Trigger
Table 9-16 Port P3 Pin Functions
PIN NAME (P3.x)xFUNCTIONCONTROL BITS AND SIGNALS(1)
P3DIR.xLCDSy
P3.0/L80P3.0 (I/O)I: 0; O: 10
L8X1 (y = 8)
P3.1/L91P3.1 (I/O)I: 0; O: 10
L9X1 (y = 9)
P3.2/L102P3.2 (I/O)I: 0; O: 10
L10X1 (y = 10)
P3.3/L113P3.3 (I/O)I: 0; O: 10
L11X1 (y = 11)
P3.4/L124P3.4 (I/O)I: 0; O: 10
L12X1 (y = 12)
P3.5/L135P3.5 (I/O)I: 0; O: 10
L13X1 (y = 13)
P3.6/L146P3.6 (I/O)I: 0; O: 10
L14X1 (y = 14)
P3.7/L157P3.7 (I/O)I: 0; O: 10
L15X1 (y = 15)
(1) X= don't care
