9.2.1.3 Application Curves

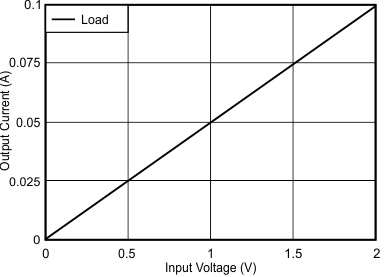

Figure 45 shows the measured transfer function for the high-side voltage-to-current converter shown in Figure 44 .

OPA188 Measured-transfer-function-for-High-Side.gif
Figure 45. Measured Transfer Function for High-Side V-I Converter
