7.3.2 Input Protection

The input stage of the OPA207 is internally protected with resistors in series with diode clamps as shown in Figure 36. The inputs can withstand ±10 V differential inputs without damage and the maximum input current should be limited to 10 mA or less.. The protection diodes conduct current when the inputs are over-driven such as when the opamp output is slewing. This may disturb the slewing behavior of unity-gain follower applications, but will not damage the operational amplifier.

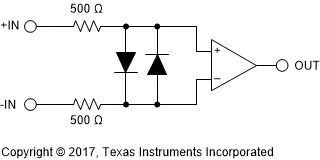

OPA207 OPA207_Input_Protection.gifFigure 36. Simplified OPA207 Input Protection Circuit
