at TA = 25°C,
VS = ±15 V, RL = 10 kΩ connected to midsupply, and
VCM = VOUT = midsupply (unless otherwise noted)
Figure 6-1 Offset Voltage Production Distribution

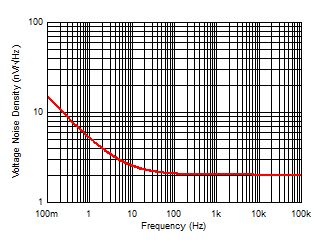

Figure 6-3 Input Voltage Noise Spectral Density vs Frequency
Figure 6-5 0.1-Hz to 10-Hz Voltage Noise

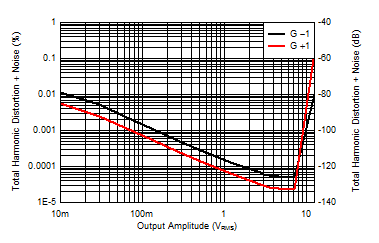

Figure 6-7 THD+N
vs Output Amplitude
Figure 6-9 Offset Voltage vs Common-Mode Voltage
Figure 6-11 PSSR
vs Frequency
Figure 6-13 CMRR
vs Frequency
Figure 6-15 Open-Loop Output Impedance vs Frequency

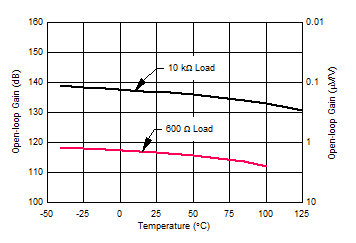

Figure 6-17 Open-Loop Gain vs Temperature
Figure 6-19 Negative Input Bias Current Production Distribution
Figure 6-21 Input Bias and Input Offset Currents vs Temperature
Figure 6-23 Negative Input Bias Current vs Common-Mode Voltage
Figure 6-25 Quiescent Current vs Supply Voltage
Figure 6-27 Output Voltage vs Output Current (Sourcing)

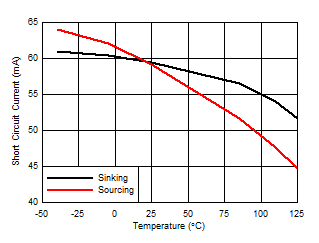

Figure 6-29 Short-Circuit Current vs Temperature
Figure 6-31 Positive Overload Recovery
| G = +1 | 10-mV step, CL = 100 pF, RL = 600 Ω |
| G = +1 | 10-V step, CL = 100 pF, RL = 600 Ω |
Figure 6-37 Small-Signal Overshoot vs Capacitive Load
Figure 6-39 EMIRR vs Frequency
Figure 6-2 Offset Voltage Drift Distribution

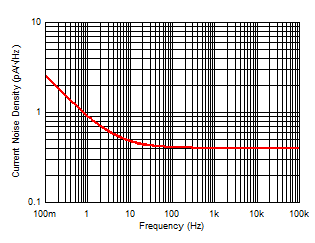

Figure 6-4 Input Current Noise Spectral Density vs Frequency
| VOUT = 3.5 VRMS | RL = 600 Ω | |
| | |
Figure 6-8 Input
Offset Voltage vs Temperature
Figure 6-10 Offset Voltage vs Supply Voltage
Figure 6-12 PSRR

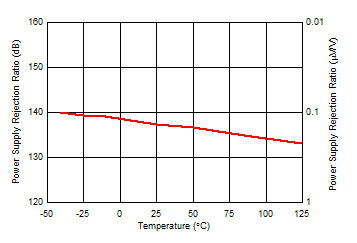

vs Temperature
Figure 6-14 CMRR
vs Temperature
Figure 6-16 Open-Loop Gain and Phase vs Frequency

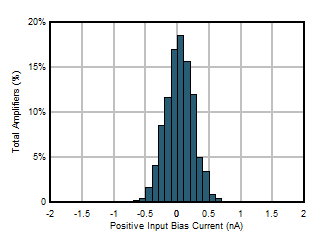

Figure 6-18 Positive Input Bias Current Production Distribution
Figure 6-20 Input Offset Current Production Distribution
Figure 6-22 Positive Input Bias Current vs Common-Mode Voltage
Figure 6-24 Input Offset Current vs Common-Mode Voltage
Figure 6-26 Quiescent Current vs Temperature
Figure 6-28 Output Voltage vs Output Current (Sinking)
Figure 6-30 No Phase Reversal
Figure 6-32 Negative Overload Recovery
| G = –1 | 10-mV step, CL = 100 pF, RL = 600 Ω |
| G = –1 | 10-V step, CL = 100 pF, RL = 600 Ω |
Figure 6-38 Settling Time
