6.9 Typical Characteristics

Standard-mode (fSCL = 100 kHz, tr = 1 µs)Fast-mode (fSCL= 400 kHz, tr = 300 ns)

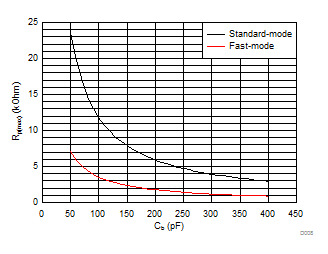

Figure 6-1 Maximum Pull-Up Resistance (Rp(max)) vs Bus Capacitance (Cb)
VOL = 0.2*VDPUX, IOL = 2 mA when VDPUX ≤ 2 V
VOL = 0.4 V, IOL = 3 mA when VDPUX > 2 V

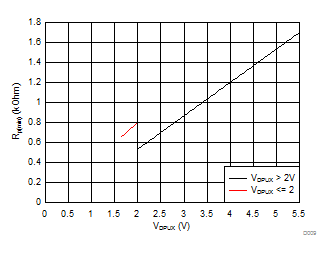

Figure 6-2 Minimum Pull-Up Resistance (Rp(min)) vs Pull-Up Reference Voltage (VDPUX)
