7 Parameter Measurement Information

CL includes probe and jig capacitance.
All inputs are supplied by generators having the following characteristics: PRR ≤ 10 MHz, ZO = 50 Ω, tr/tf  ≤ 30 ns.
Not all parameters and waveforms are applicable to all devices.

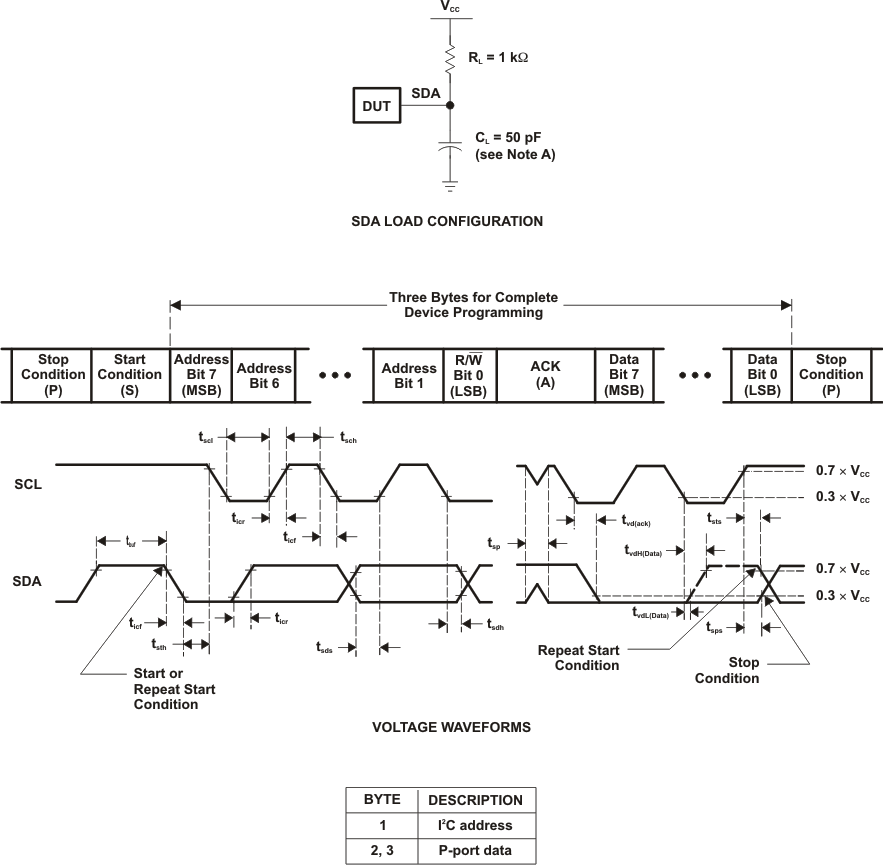

Figure 7-1 I2C Load Circuit and Voltage Waveforms
CL includes probe and jig capacitance.
All inputs are supplied by generators having the following characteristics: PRR ≤ 10 MHz, ZO = 50 Ω, tr/tf  ≤ 30 ns.
I/Os are configured as inputs.
Not all parameters and waveforms are applicable to all devices.

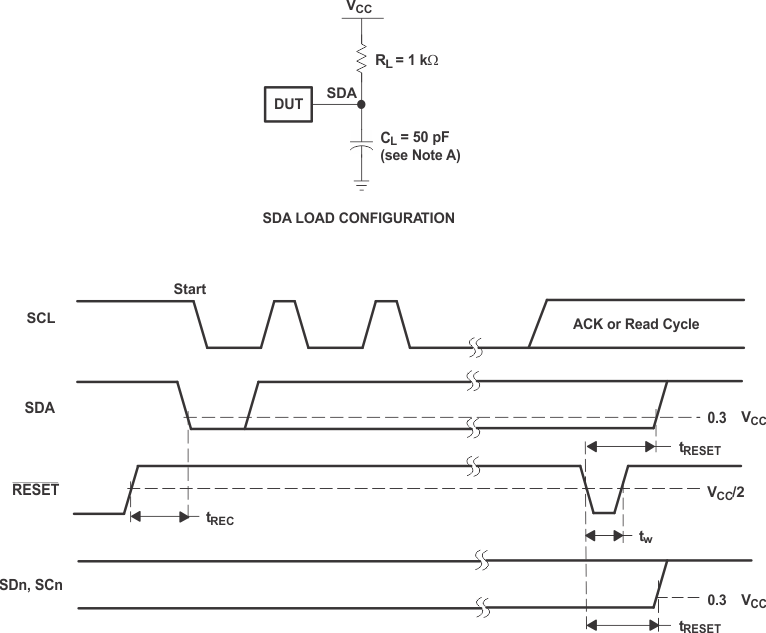

Figure 7-2 Reset Load Circuit and Voltage Waveforms
