8.6.1.2.7 DMF[1:0]: Sampling Frequency Selection for the De-Emphasis Function

Default value: 00

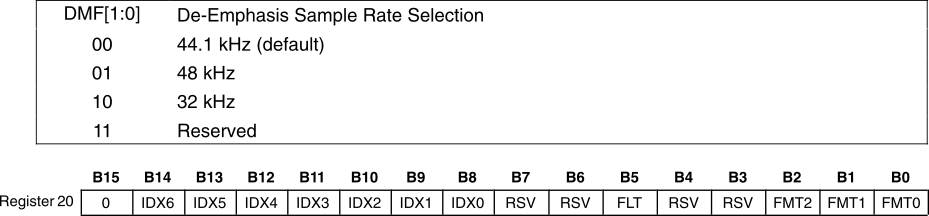

The DMF[1:0] bits are used to select the sampling frequency used for the digital de-emphasis function when it is enabled.

PCM1753 PCM1754 PCM1755 sftwarectrl_13.gif
