8.6.1.2.12 AZRO: Zero Flag Function Select

Default value: 0

PCM1753 PCM1754 PCM1755 sftwarectrl_19.gif

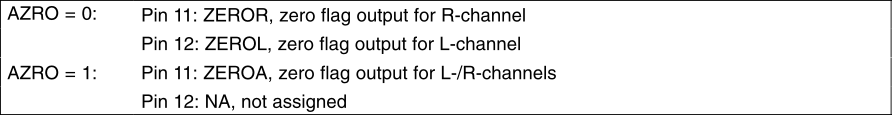

The AZRO bit allows the user to select the function of zero flag pins.

PCM1753 PCM1754 PCM1755 sftwarectrl_20.gif
