7.8 Typical Characteristics

at T_A = 25°C, AVDD = 3.3 V, IOVDD = 3.3 V, f_IN = 1-kHz sinusoidal signal, f_S = 48 kHz, 32-bit audio data, BCLK = 256 × f_S, TDM slave mode, PLL on, DRE_LVL = –36 dB, channel gain = 0 dB, and linear phase decimation filter (unless otherwise noted); all performance measurements are done with a 20-kHz, low-pass filter, and an A-weighted filter

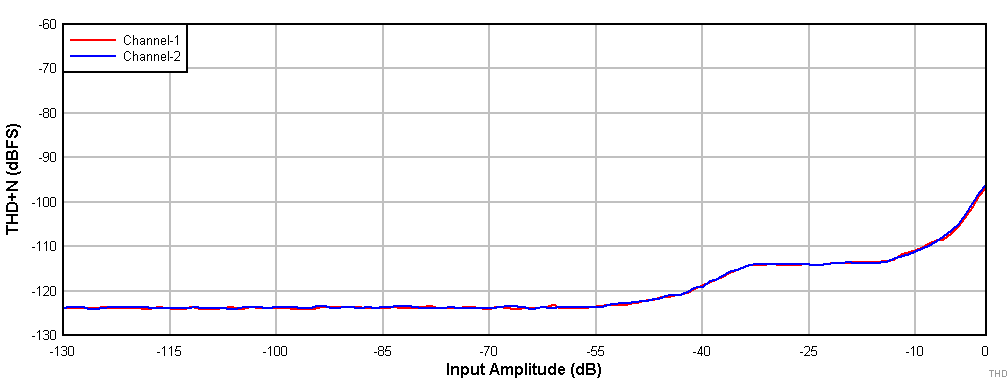

Figure 7-1 PCM1820: THD+N vs Input Amplitude
With DRE Enabled

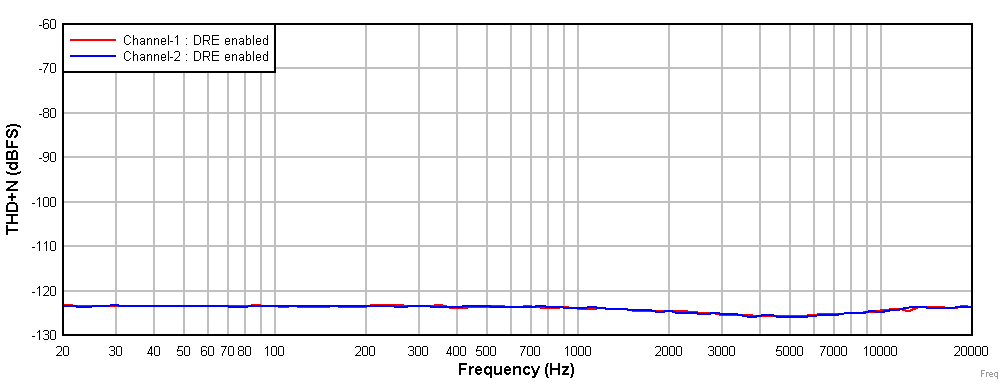

Figure 7-3 PCM1820: THD+N vs Input Frequency
With a –60-dBr Input

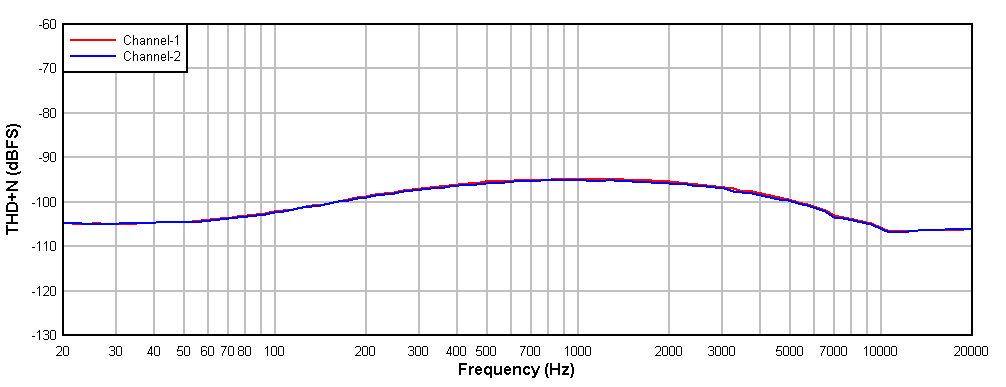

Figure 7-5 PCM1820: THD+N vs Input Frequency

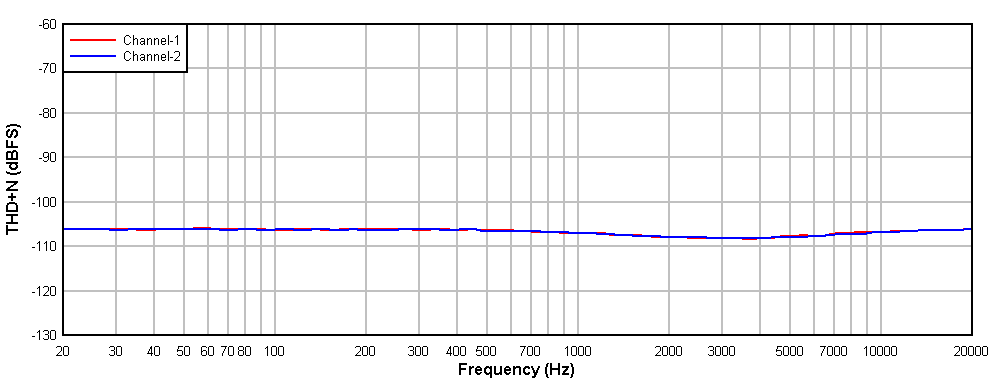

With a –1-dBr Input

Figure 7-7 PCM1820: Power-Supply Rejection Ratio vs
Ripple Frequency With a 100-mV_PP Amplitude

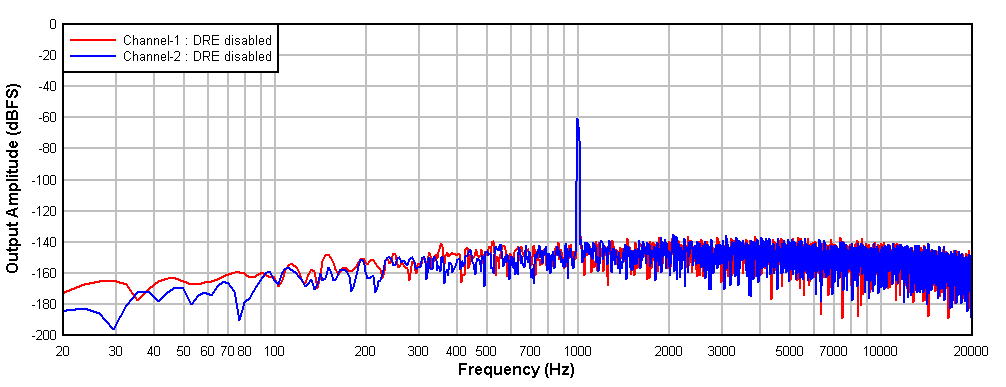

Figure 7-9 PCM1820: FFT With Idle Input and DRE Disabled

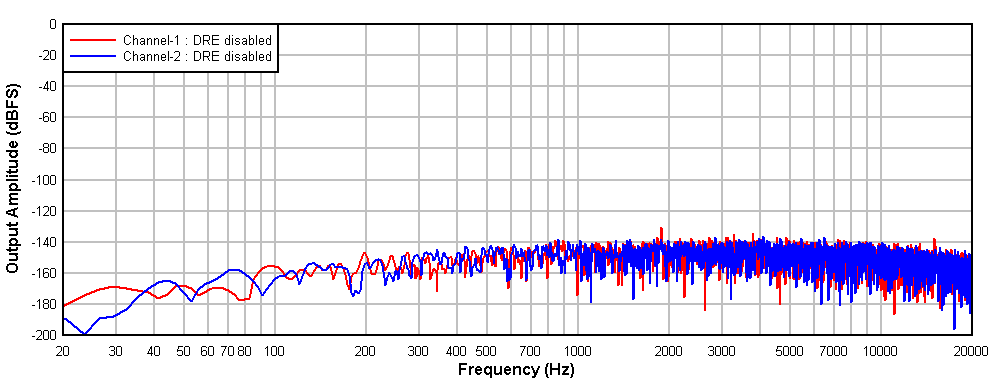

Figure 7-11 PCM1820: FFT With a –60-dBr Input and DRE Disabled

Figure 7-13 PCM1821: THD+N vs Input Amplitude

Figure 7-15 PCM1821: THD+N vs Input Frequency
With a –1-dBr Input

Figure 7-17 PCM1821: Power-Supply Rejection Ratio vs
Ripple Frequency With a 100-mV_PP Amplitude

Figure 7-19 PCM1821: FFT With a –60-dBr Input

Figure 7-2 PCM1820: THD+N vs Input Amplitude
With DRE Disabled

Figure 7-4 PCM1820: THD+N vs Input Frequency
With a –60-dBr Input

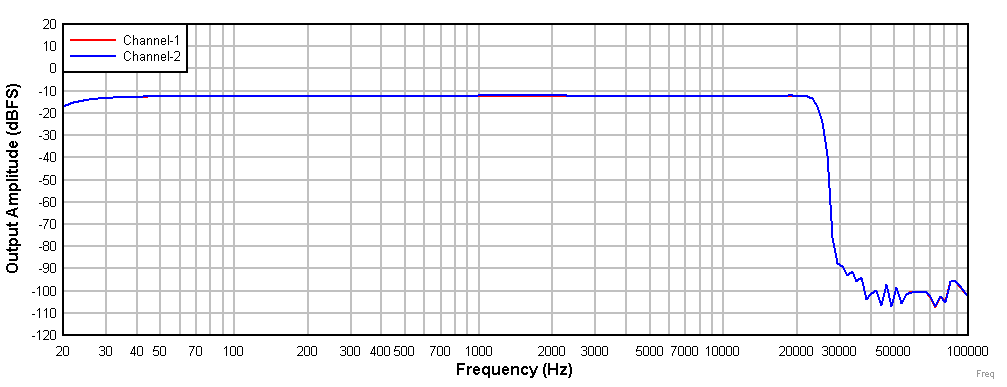

Figure 7-6 PCM1820: Frequency Response
With a –12-dBr Input

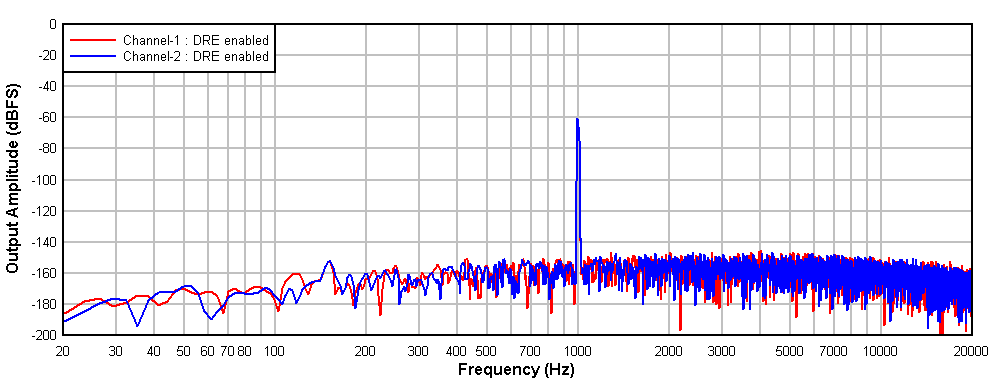

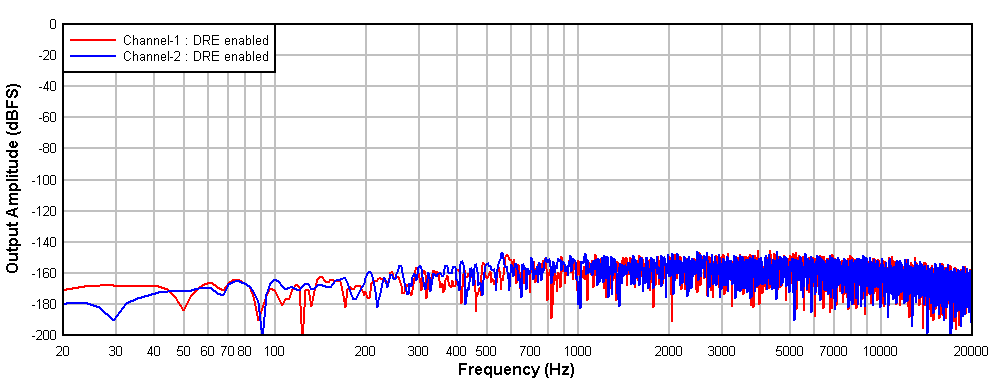

Figure 7-8 PCM1820: FFT With Idle Input and DRE Enabled

Figure 7-10 PCM1820: FFT With a –60-dBr Input and DRE Enabled

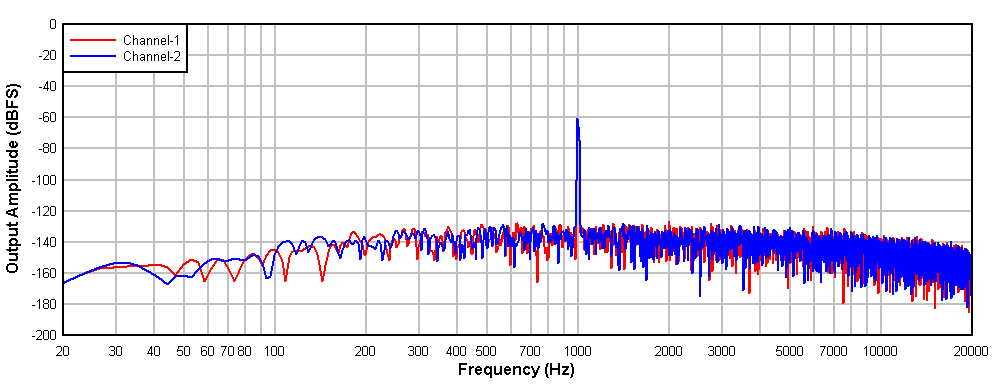

Figure 7-12 PCM1820: FFT With a –1-dBr Input

Figure 7-14 PCM1821: THD+N vs Input Frequency
With a –60-dBr Input

Figure 7-16 PCM1821: Frequency Response
With a –12-dBr Input

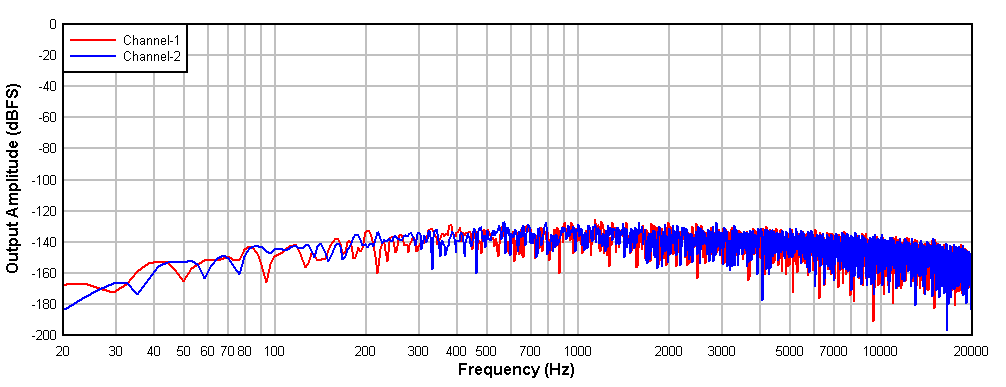

Figure 7-18 PCM1821: FFT With Idle Input

Figure 7-20 PCM1821: FFT With a –1-dBr Input
