8.3.6.2.2.2 Sampling Rate: 24 kHz or 22.05 kHz

Figure 8-25 shows the magnitude response and Figure 8-26 shows the pass-band ripple and phase deviation for a decimation filter with a sampling rate of 24 kHz or 22.05 kHz. Table 8-16 lists the specifications for a decimation filter with a 24-kHz or 22.05-kHz sampling rate.

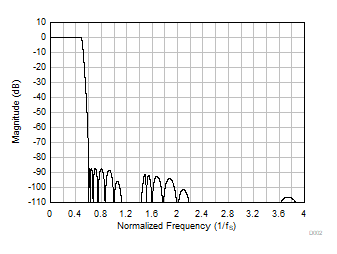

GUID-16101C4E-BB7C-4A53-9046-4A27265258C2-low.gifFigure 8-25 Low-Latency Decimation Filter Magnitude Response

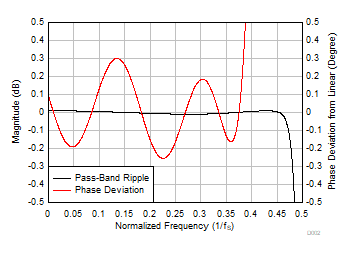

GUID-04ED6CB9-6441-41C6-A0B7-EDD1355710FB-low.gifFigure 8-26 Low-Latency Decimation Filter Pass-Band Ripple and Phase Deviation
Table 8-16 Low-Latency Decimation Filter Specifications
PARAMETERTEST CONDITIONSMINTYPMAXUNIT
Pass-band rippleFrequency range is 0 to 0.459 × fS–0.010.01dB
Stop-band attenuationFrequency range is 0.6 × fS onwards87.2dB
Group delay or latencyFrequency range is 0 to 0.365 × fS7.51/fS
Group delay deviationFrequency range is 0 to 0.365 × fS–0.0260.0261/fS
Phase deviationFrequency range is 0 to 0.365 × fS–0.260.30Degrees
