8.3.6.2.1.4 Sampling Rate: 32 kHz or 29.4 kHz

Figure 8-15 and Figure 8-16 respectively show the magnitude response and the pass-band ripple for a decimation filter with a sampling rate of 32 kHz or 29.4 kHz. Table 8-11 lists the specifications for a decimation filter with an 32-kHz or 29.4-kHz sampling rate.

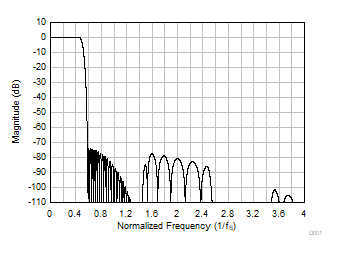

GUID-8C2E378C-C876-40DB-BB93-6E3FF1682C45-low.gifFigure 8-15 Linear Phase Decimation Filter Magnitude Response
GUID-CCDFF32F-BC4B-451A-8267-1B3D03E426F4-low.gifFigure 8-16 Linear Phase Decimation Filter Pass-Band Ripple
Table 8-11 Linear Phase Decimation Filter Specifications
PARAMETERTEST CONDITIONSMINTYPMAXUNIT
Pass-band rippleFrequency range is 0 to 0.454 × fS–0.050.05dB
Stop-band attenuationFrequency range is 0.58 × fS to 4 × fS73.7dB
Frequency range is 4 × fS onwards107.2
Group delay or latencyFrequency range is 0 to 0.454 × fS16.91/fS
