6.3.7.2.1.4 Sampling Rate: 32kHz or 29.4kHz

Figure 6-16 and Figure 6-17 show the magnitude response and the pass-band ripple for a decimation filter with a sampling rate of 32kHz or 29.4kHz. Table 6-11 lists the specifications for a decimation filter with an 32kHz or 29.4kHz sampling rate.

PCM1841-Q1 Linear Phase Decimation Filter Magnitude ResponseFigure 6-16 Linear Phase Decimation Filter Magnitude Response

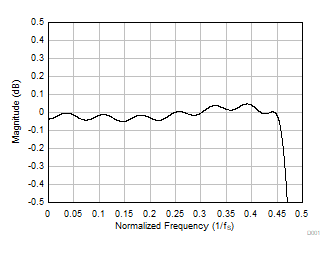

PCM1841-Q1 Linear Phase Decimation Filter Pass-Band RippleFigure 6-17 Linear Phase Decimation Filter Pass-Band Ripple
Table 6-11 Linear Phase Decimation Filter Specifications
PARAMETERTEST CONDITIONSMINTYPMAXUNIT
Pass-band rippleFrequency range is 0 to 0.454 × fS–0.050.05dB
Stop-band attenuationFrequency range is 0.58 × fS to 4 × fS73.7dB
Frequency range is 4 × fS onwards107.2
Group delay or latencyFrequency range is 0 to 0.454 × fS16.91/fS
