6.3.7.2.2.1 Sampling Rate: 16kHz or 14.7kHz

Figure 6-24 shows the magnitude response and Figure 6-25 shows the pass-band ripple and phase deviation for a decimation filter with a sampling rate of 16kHz or 14.7kHz. Table 6-15 lists the specifications for a decimation filter with a 16kHz or 14.7kHz sampling rate.

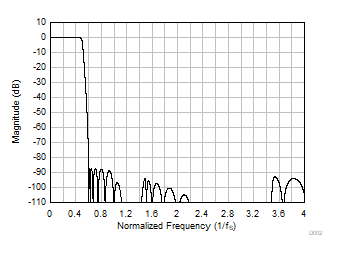

PCM1841-Q1 Low-Latency Decimation Filter Magnitude ResponseFigure 6-24 Low-Latency Decimation Filter Magnitude Response
PCM1841-Q1 Low-Latency Decimation Filter Pass-Band Ripple and Phase DeviationFigure 6-25 Low-Latency Decimation Filter Pass-Band Ripple and Phase Deviation
Table 6-15 Low-Latency Decimation Filter Specifications
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
Pass-band ripple Frequency range is 0 to 0.451 × fS –0.05 0.05 dB
Stop-band attenuation Frequency range is 0.61 × fS onwards 87.3 dB
Group delay or latency Frequency range is 0 to 0.363 × fS 7.6 1/fS
Group delay deviation Frequency range is 0 to 0.363 × fS –0.022 0.022 1/fS
Phase deviation Frequency range is 0 to 0.363 × fS –0.21 0.25 Degrees
