8.3.6.7.2.3 Sampling Rate: 29.4 kHz to 32 kHz

Figure 8-41 shows the magnitude response and Figure 8-42 shows the pass-band ripple and phase deviation for a decimation filter with a sampling rate of 29.4 kHz to 32 kHz. Table 8-34 lists the specifications for a decimation filter with a 29.4-kHz to 32-kHz sampling rate.

GUID-63E6CAA0-E8E7-4D2E-A841-D90DE32BE921-low.gifFigure 8-41 Low-Latency Decimation Filter Magnitude Response

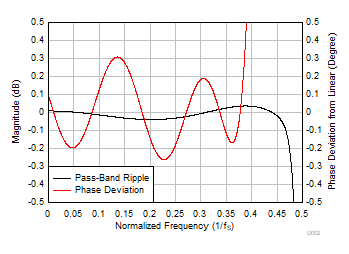

GUID-415B5C23-DD0D-4649-9379-2859DCA442FC-low.gifFigure 8-42 Low-Latency Decimation Filter Pass-Band Ripple and Phase Deviation
Table 8-34 Low-Latency Decimation Filter Specifications
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
Pass-band ripple Frequency range is 0 to 0.457 × fS –0.04 0.04 dB
Stop-band attenuation Frequency range is 0.6 × fS onwards 88.3 dB
Group delay or latency Frequency range is 0 to 0.368 × fS 8.7 1/fS
Group delay deviation Frequency range is 0 to 0.368 × fS –0.026 0.026 1/fS
Phase deviation Frequency range is 0 to 0.368 × fS –0.26 0.31 Degrees
