8.2 Typical Application

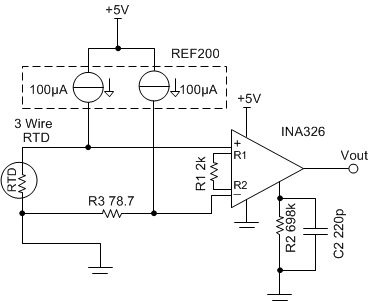

Figure 11 shows the schematic of a circuit that translates RTD resistance to a voltage level convenient for an ADC input. The REF200 precision current reference provides excitation and an instrumentation amplifier scales the signal. The design also uses a 3-wire RTD configuration to minimize errors due to wiring resistance.

REF200 TYPCL_APP_FIRST.gifFigure 11. RTD Resistance to Voltage Converter Schematic
