7 Specifications

7.1 Absolute Maximum Ratings

over operating free-air temperature range (unless otherwise noted)(1)
MIN MAX UNIT
Supply voltage, V+ to V– 7 V
Output short circuit Continuous
Operating temperature –55 135 °C
Junction temperature 150 °C
Storage temperature, Tstg –65 150 °C
(1) Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings only, which do not imply functional operation of the device at these or any other conditions beyond those indicated under Recommended Operating Conditions. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.

7.2 ESD Ratings

VALUE UNIT
V(ESD) Electrostatic discharge Human-body model (HBM), per ANSI/ESDA/JEDEC JS-001(1) ±2000 V
Charged-device model (CDM), per JEDEC specification JESD22-C101(2) ±1000
(1) JEDEC document JEP155 states that 500-V HBM allows safe manufacturing with a standard ESD control process.
(2) JEDEC document JEP157 states that 250-V CDM allows safe manufacturing with a standard ESD control process.

7.3 Recommended Operating Conditions

over operating free-air temperature range (unless otherwise noted)
MIN MAX UNIT
VIN Input voltage VREF + 0.05(1) 5.5 V
ILOAD Load current 25 mA
TA Operating temperature –40 125 °C
(1) Minimum supply voltage for the REF3112 is 1.8 V.

7.4 Thermal Information

THERMAL METRIC(1) REF31xx UNIT
DBZ (SOT-23)
3 PINS
RθJA Junction-to-ambient thermal resistance 292.9 °C/W
RθJC(top) Junction-to-case (top) thermal resistance 124.4 °C/W
RθJB Junction-to-board thermal resistance 89 °C/W
ψJT Junction-to-top characterization parameter 11.4 °C/W
ψJB Junction-to-board characterization parameter 87.6 °C/W
RθJC(bot) Junction-to-case (bottom) thermal resistance — °C/W
(1) For more information about traditional and new thermal metrics, see the Semiconductor and IC Package Thermal Metrics application report, SPRA953.

7.5 Electrical Characteristics

at TA = 25°C, ILOAD = 0 mA, and VIN = 5 V (unless otherwise noted)
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
REF3312(1) — 1.25 V
VOUT Output voltage 1.2475 1.25 1.2525 V
Initial accuracy –0.2% 0.2%
Output voltage noise f = 0.1 Hz to 10 Hz 17 μVPP
f = 10 Hz to 10 kHz 24 μVRMS
REF3120 — 2.048 V
VOUT Output voltage 2.0439 2.048 2.0521 V
Initial accuracy –0.2% 0.2%
Output voltage noise f = 0.1Hz to 10Hz 27 μVPP
f = 10Hz to 10kHz 39 μVRMS
REF3125 — 2.5 V
VOUT Output voltage 2.495 2.5 2.505 V
Initial accuracy –0.2% 0.2%
Output voltage noise f = 0.1Hz to 10Hz 33 μVPP
f = 10Hz to 10kHz 48 μVRMS
REF3130 — 3 V
VOUT Output voltage 2.994 3 3.006 V
Initial accuracy –0.2% 0.2%
Output voltage noise f = 0.1Hz to 10Hz 39 μVPP
f = 10Hz to 10kHz 57 μVRMS
REF3133 — 3.3 V
VOUT Output voltage 3.2934 3.3 3.3066 V
Initial accuracy –0.2% 0.2%
Output voltage noise f = 0.1Hz to 10Hz 43 μVPP
f = 10Hz to 10kHz 63 μVRMS
REF3140 — 4.096 V
VOUT Output voltage 4.0878 4.096 4.1042 V
Initial accuracy –0.2% 0.2%
Output voltage noise f = 0.1Hz to 10Hz 53 μVPP
f = 10Hz to 10kHz 78 μVRMS
REF31xx (REF3112, REF3120, REF3125, REF3130, REF3133, REF3140)
dVOUT/dT Output voltage temperature drift(2) TA = 0°C to 70°C. 5 15 ppm/°C
TA = –40°C to +125°C . 10 20
Long-term stability 0 to 1000 hours 70 ppm
Line regulation VREF + 0.05(1) ≤ VIN ≤ 5.5V 20 65 ppm/V
dVOUT/dILOAD Load regulation(3) Sourcing 0mA < ILOAD < 10mA, VIN = VREF + 250mV(1) 10 30 µV/mA
Sinking –10mA < ILOAD < 0mA, VIN = VREF + 100mV(1) 20 50
dT Thermal hysteresis(4) First Cycle 100 ppm
Additional Cycles 25
VIN – VOUT Dropout voltage(1) TA = –40°C to +125°C. 5 50 mV
ILOAD Output current –10 10 mA
ISC Short-circuit current Sourcing 50 mA
Sinking 40
Turnon settling time To 0.1% at VIN = +5V with CL = 0μF 400 µs
POWER SUPPLY
VS Voltage ILOAD = 0, TA = –40°C to +125°C. VREF + 0.05(1) 5.5 V
IQ Quiescent current ILOAD = 0, TA = 25°C 100 115 µA
ILOAD = 0, TA = –40°C to +125°C 115 135
(1) Minimum supply voltage for the REF3112 is 1.8 V.
(2) Box Method used to determine temperature drift.
(3) Typical value of load regulation reflects measurements using force and sense contacts; see Load Regulation.
(4) Thermal hysteresis is explained in more detail in Application and Implementation of this data sheet.

7.6 Typical Characteristics

At TA = 25°C, VIN = 5-V power supply, and REF3125 is used for typical characteristic measurements, unless otherwise noted.

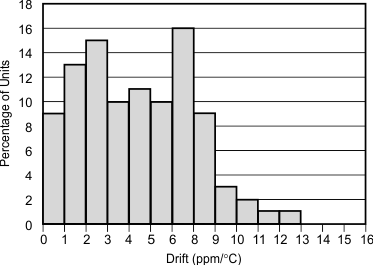

REF3112 REF3120 REF3125 REF3130 REF3133 REF3140 tc_tmp_drift_0-70_bvs046.gif Figure 1. Temperature Drift (0°C to 70°C)

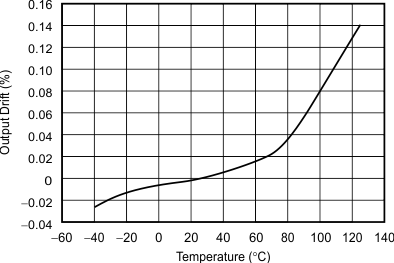

REF3112 REF3120 REF3125 REF3130 REF3133 REF3140 tc_vout-tmp_bvs046.gif Figure 3. Output Voltage vs Temperature

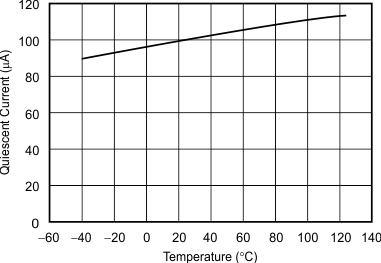

REF3112 REF3120 REF3125 REF3130 REF3133 REF3140 tc_iq-tmp_bvs046.gif Figure 5. Quiescent Current vs Temperature

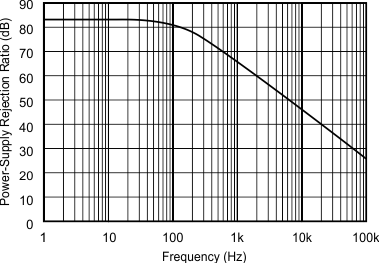

REF3112 REF3120 REF3125 REF3130 REF3133 REF3140 tc_psrr-frq_bvs046.gif Figure 7. PSRR vs Frequency

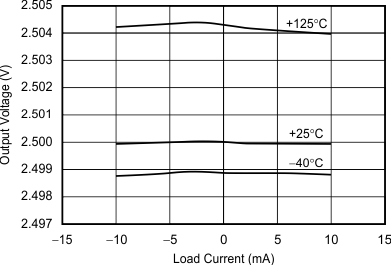

REF3112 REF3120 REF3125 REF3130 REF3133 REF3140 tc_vout-load_bvs046.gif Figure 9. Output Voltage vs Load Current

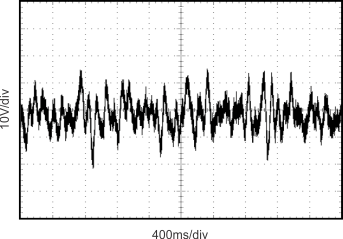

REF3112 REF3120 REF3125 REF3130 REF3133 REF3140 tc_noise_bvs046.gif Figure 11. 0.1-Hz to 10-Hz Noise

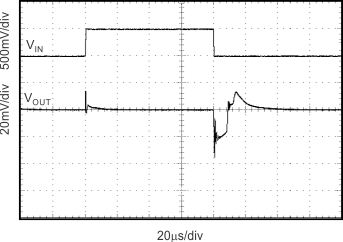

REF3112 REF3120 REF3125 REF3130 REF3133 REF3140 tc_line_trans_0pf_bvs046.gif Figure 13. Line Transient CL = 0 pF

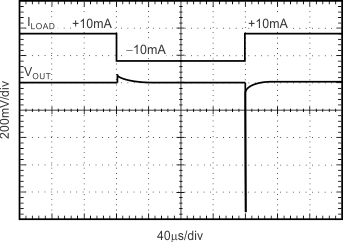

REF3112 REF3120 REF3125 REF3130 REF3133 REF3140 tc_load_trans_0pf_10ma_bvs046.gif Figure 15. Load Transient CL = 0 pF, ±10-mA Output Pulse

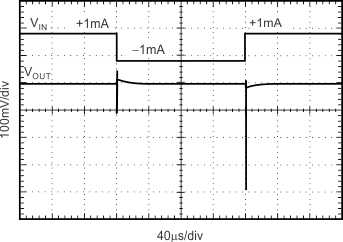

REF3112 REF3120 REF3125 REF3130 REF3133 REF3140 tc_load_trans_0pf_1ma_bvs046.gif Figure 17. Load Transient CL = 0 pF, ±1-mA Output Pulse

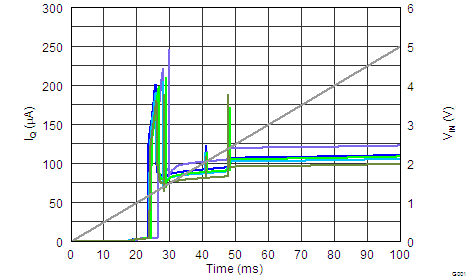

REF3112 REF3120 REF3125 REF3130 REF3133 REF3140 G001_SBVS046.png Figure 19. REF3125 Start-Up

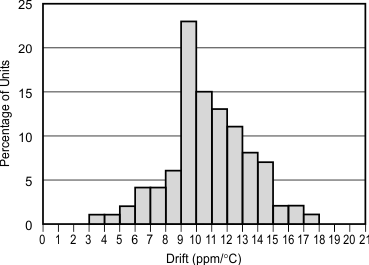

REF3112 REF3120 REF3125 REF3130 REF3133 REF3140 tc_tmp_drift_40-125_bvs046.gif Figure 2. Temperature Drift (–40°C to +125°C)
REF3112 REF3120 REF3125 REF3130 REF3133 REF3140 tc_dropout-load_bvs046.gif Figure 4. Dropout Voltage vs Load Current

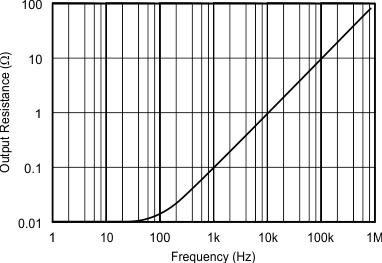

REF3112 REF3120 REF3125 REF3130 REF3133 REF3140 tc_impedance-frq_bvs046.gif Figure 6. Output Impedance vs Frequency

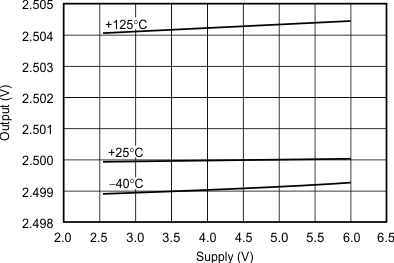

REF3112 REF3120 REF3125 REF3130 REF3133 REF3140 tc_output-supply_bvs046.gif Figure 8. Output vs Supply

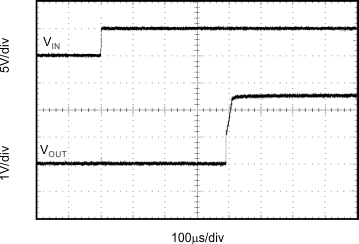

REF3112 REF3120 REF3125 REF3130 REF3133 REF3140 tc_step_response_bvs046.gif Figure 10. Step Response, CL = 0, 5-V Start-Up

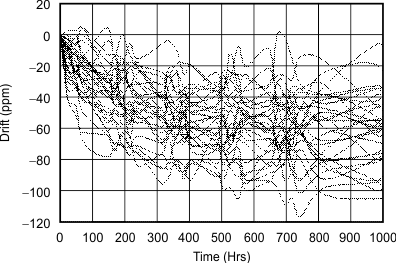

REF3112 REF3120 REF3125 REF3130 REF3133 REF3140 tc_long_term_stability_bvs046.gif Figure 12. REF3112 Long-Term Stability

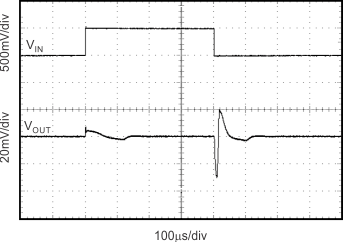

REF3112 REF3120 REF3125 REF3130 REF3133 REF3140 tc_line_trans_10uf_bvs046.gif Figure 14. Line Transient CL = 10 μF

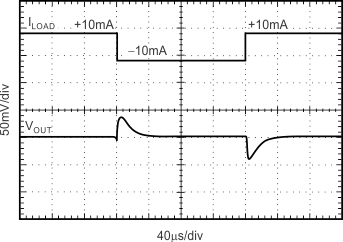

REF3112 REF3120 REF3125 REF3130 REF3133 REF3140 tc_load_trans_1uf_10ma_bvs046.gif Figure 16. Load Transient CL = 1 µF, ±10-mA Output Pulse
REF3112 REF3120 REF3125 REF3130 REF3133 REF3140 tc_load_trans_1uf_1ma_bvs046.gif Figure 18. Load Transient CL = 1 µF, ±1-mA Output Pulse
