7.11 Typical Characteristics
at TA = 25°C, VIN = VEN = VREF + 0.5 V, IL = 0 mA, CL = 10 μF, CIN = 0.1 μF, VREF = 2.5 V (unless otherwise noted)
Figure 7-1 Output Voltage Vs Free-Air Temperature
(REF7025QFKHR)
Figure 7-3 Temperature Drift Distribution
(REF7025QFKHR)
Figure 7-5 Temperature Drift Distribution
(REF7012QDGKR)
Figure 7-7 Accuracy Distribution (REF7012QDGKR)
Figure 7-9 Load
Regulation (Sourcing) vs Temperature
Figure 7-11 Line

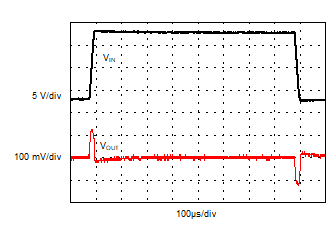

Regulation Response
Figure 7-13 Load
Transient Response (CL = 10 μF)
Figure 7-15 Quiescent Current vs Temperature
Figure 7-17 Enable
Threshold vs VIN
Figure 7-19 0.1-Hz
to 10-Hz Voltage Noise Distribution (300
units)
Figure 7-21 Power-Supply Rejection Ratio vs Frequency
Figure 7-23 REF7012QFKHR Thermal Hysteresis Distribution (0°C
to 70°C)
Figure 7-25 Long-Term Stability LCCC
package (First 10000 Hours)
Figure 7-27 Long-Term Stability VSSOP package REF7025 (First
10000 Hours)
Figure 7-2 Output
Voltage Vs Free-Air Temperature
(REF7012QDGKR)
Figure 7-4 Temperature Drift Distribution
(REF7012QDGKR)

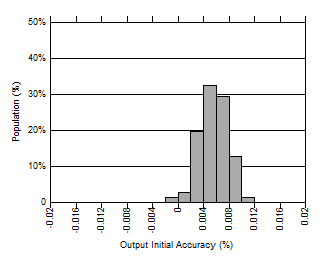

Figure 7-6 Accuracy Distribution (REF7025QFKHR)
Figure 7-8 Line
Regulation vs Temperature
Figure 7-10 Load
Regulation (Sinking) vs Temperature
Figure 7-12 Load
Transient Response (CL = 1 μF)
Figure 7-14 Output
Impedance

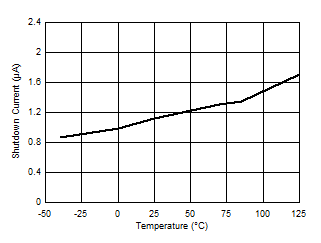

Figure 7-16 Shutdown Current vs Temperature
Figure 7-18 Dropout Voltage vs Temperature
Figure 7-20 Noise
Performance 10 Hz to 100 kHz
Figure 7-22 REF7025QFKHR Thermal Hysteresis Distribution (0°C
to 70°C)
Figure 7-24 REF7012QDGKR Thermal Hysteresis Distribution (0°C
to 70°C)
Figure 7-26 Long-Term Stability VSSOP package REF7012 (First
1000 Hours)
