3 Description

These octal bus transceivers are designed for asynchronous two-way communication between data buses. The control-function implementation minimizes external timing requirements.

The devices allow data transmission from the A bus to the B bus or from the B bus to the A bus, depending on the logic level at the direction-control (DIR) input. The output-enable ( OE) input can be used to disable the device so that the buses are effectively isolated.

Device Information(1)
PART NUMBERPACKAGEBODY SIZE (NOM)
SNx4HC245DB (SSOP, 20)7.20 mm × 5.30 mm
DW (SOIC, 20)12.80 mm × 7.50 mm
N (PDIP, 20)24.33 mm × 6.35 mm
NS (SO, 20)12.60 mm × 5.30 mm
PW (TSSOP, 20)6.50 mm × 4.40 mm
(1) For all available packages, see the orderable addendum at the end of the data sheet.

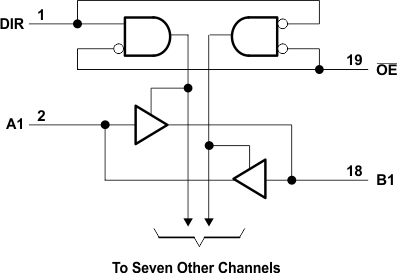

GUID-7CB0433C-CE08-4EC3-BA28-BE92407B64F1-low.gifLogic Diagram (Positive Logic)
