7 Parameter Measurement Information

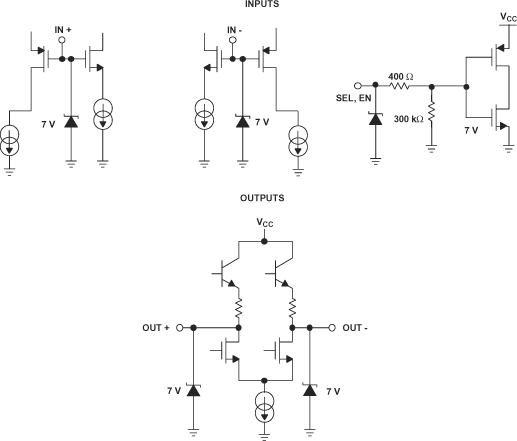

GUID-BFF435B9-DBA7-431F-92F9-D061C87FB56B-low.gif Figure 7-1 Equivalent Input and Output Schematic Diagrams
GUID-217DD922-0D29-4D9C-AD21-6CF29CA8F621-low.gif Figure 7-2 Voltage And Current Definitions
GUID-E73F974C-E031-405B-84F3-C5FC38BF7271-low.gif Figure 7-3 Differential Output Voltage (VOD) Test Circuit
All input pulses are supplied by a generator having the following characteristics: tr or tf ≤ 1 ns, pulse-repetition rate (PRR) = 0.5 Mpps, pulse width = 500 ±10 ns; RL = 100 Ω; CL includes instrumentation and fixture capacitance within 0,06 mm of the D.U.T.; the measurement of VOC(PP) is made on test equipment with a –3 dB bandwidth of at least 300 MHz.

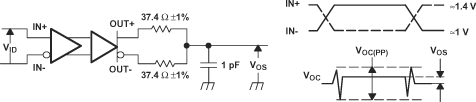

Figure 7-4 Test Circuit And Definitions For The Driver Common-Mode Output Voltage
All input pulses are supplied by a generator having the following characteristics: tr or tf ≤ .25 ns, pulse-repetition rate (PRR) = 0.5 Mpps, pulse width = 500 ± 10 ns. CL includes instrumentation and fixture capacitance within 0,06 mm of the D.U.T.
Figure 7-5 Timing Test Circuit And Waveforms
All input pulses are supplied by a generator having the following characteristics: tr or tf ≤ 1 ns, pulse-repetition rate (PRR) = 0.5 Mpps, pulse width = 500 ± 10 ns. CL includes instrumentation and fixture capacitance within 0,06 mm of the D.U.T.

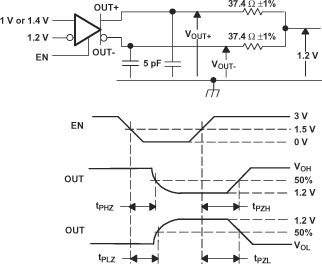

Figure 7-6 Enable And Disable Time Circuit And Definitions
Table 7-1 Receiver Input Voltage Threshold Test
APPLIED VOLTAGES RESULTING DIFFERENTIAL
INPUT VOLTAGE		 RESULTING COMMON-
MODE INPUT VOLTAGE		 OUTPUT(1)
VIA VIB VID VIC
1.25 V 1.15 V 100 mV 1.2 V H
1.15 V 1.25 V –100 mV 1.2 V L
4.0 V 3.9 V 100 mV 3.95 V H
3.9 V 4. 0 V –100 mV 3.95 V L
0.1 V 0.0 V 100 mV 0.05 V H
0.0 V 0.1 V –100 mV 0.05 V L
1.7 V 0.7 V 1000 mV 1.2 V H
0.7 V 1.7 V –1000 mV 1.2 V L
4.0 V 3.0 V 1000 mV 3.5 V H
3.0 V 4.0 V –1000 mV 3.5 V L
1.0 V 0.0 V 1000 mV 0.5 V H
0.0 V 1.0 V –1000 mV 0.5 V L
(1) H = high level, L = low level
tSET and tHOLD times specify that data must be in a stable state before and after mux control switches.
Figure 7-7 Input To Select For Both Rising And Falling Edge Setup And Hold Times
