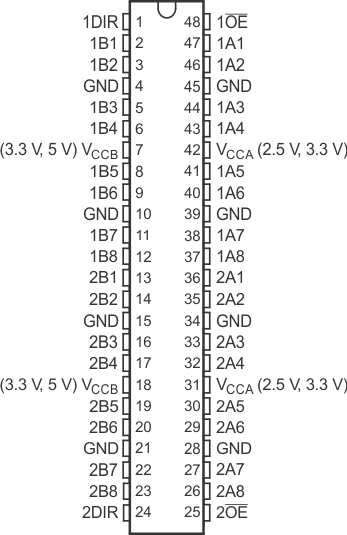

5 Pin Configuration and Functions

DGG and DL Packages
48-Pin TSSOP and BGA MICROSTAR JUINIOR
Top View
SN74ALVC164245 po_dgg_cas416.gif

Pin Functions

PIN I/O DESCRIPTION
NO. NAME
1 1DIR — Direction Pin 1
2 1B1 I/O 1B1 input or output
3 1B2 I/O 1B2 input or output
4 GND — Ground pin
5 1B3 I/O 1B3 input or output
6 1B4 I/O 1B4 input or output
7 VCCB
(3.3 V, 5 V)		 — Power pin
8 1B5 I/O 1B5 input or output
9 1B6 I/O 1B6 input or output
10 GND — Ground pin
11 1B7 I/O 1B7 input or output
12 1B8 I/O 1B8 input or output
13 2B1 I/O 2B1 input or output
14 2B2 I/O 2B2 input or output
15 GND — Ground pin
16 2B3 I/O 2B3 input or output
17 2B4 I/O 2B4 input or output
18 VCCB
(3.3 V, 5 V)		 — Power pin
19 2B5 I/O 2B5 input or output
20 2B6 I/O 2B6 input or output
21 GND — Ground pin
22 2B7 I/O 2B7 input or output
23 2B8 I/O 2B8 input or output
24 2DIR — Direction pin 2
25 2OE I Output Enable 2
26 2A8 I/O 2A8 input or output
27 2A7 I/O 2A7 input or output
28 GND — Ground pin
29 2A6 I/O 2A6 input or output
30 2A5 I/O 2A5 input or output
31 VCCA
(2.5 V, 3.3 V)		 — Power pin
32 2A4 I/O 2A4 input or output
33 2A3 I/O 2A3 input or output
34 GND — Ground pin
35 2A2 I/O 2A2 input or output
36 2A1 I/O 2A1 input or output
37 1A8 I/O 1A8 input or output
38 1A7 I/O 1A7 input or output
39 GND — Ground pin
40 1A6 I/O 1A6 input or output
41 1A5 I/O 1A5 input or output
42 VCCA
(2.5 V, 3.3 V)		 — Power pin
43 1A4 I/O 1A4 input or output
44 1A3 I/O 1A3 input or output
45 GND — Ground pin
46 1A2 I/O 1A2 input or output
47 1A1 I/O 1A1 input or output
48 1OE I Output Enable 1
SN74ALVC164245 po2a_cas416.gif

Table 1. Pin Assignments(1)
(56-Ball GQL or ZQL Package)

1 2 3 4 5 6
A 1DIR NC NC NC NC 1OE
B 1B2 1B1 GND GND 1A1 1A2
C 1B4 1B3 VCCB VCCA 1A3 1A4
D 1B6 1B5 GND GND 1A5 1A6
E 1B8 1B7 — — 1A7 1A8
F 2B1 2B2 — — 2A2 2A1
G 2B3 2B4 GND GND 2A4 2A3
H 2B5 2B6 VCCB VCCA 2A6 2A5
J 2B7 2B8 GND GND 2A8 2A7
K 2DIR NC NC NC NC 2OE
(1) NC – No internal connection

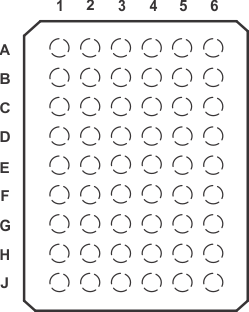

SN74ALVC164245 po3_cas416.gif

Table 2. Pin Assignments(1)
(54-Ball GRD or ZRD Package)

1 2 3 4 5 6
A 1B1 NC 1DIR 1OE NC 1A1
B 1B3 1B2 NC NC 1A2 1A3
C 1B5 1B4 VCCB VCCA 1A4 1A5
D 1B7 1B6 GND GND 1A6 1A7
E 2B1 1B8 GND GND 1A8 2A1
F 2B3 2B2 GND GND 2A2 2A3
G 2B5 2B4 VCCB VCCA 2A4 2A5
H 2B7 2B6 NC NC 2A6 2A7
J 2B8 NC 2DIR 2OE NC 2A8
(1) NC – No internal connection
