9 Application and Implementation

NOTE

Information in the following applications sections is not part of the TI component specification, and TI does not warrant its accuracy or completeness. TI’s customers are responsible for determining suitability of components for their purposes. Customers should validate and test their design implementation to confirm system functionality.

9.1 Application Information

The open-collector device is suitable for high-drive and high-voltage translation applications.

9.2 Typical Application

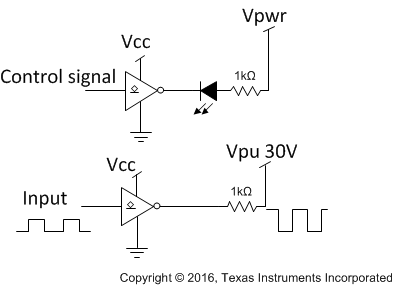

SN54LS06 SN74LS06 typ_app.gif Figure 3. Application Schematic

9.2.1 Design Requirements

The SNx4LS06 are open-collector devices which can sink current (up to 40 mA on SN74LS06). The devices can be used in applications such as LED drivers and voltage translation using pullup resistors.

9.2.2 Detailed Design Procedure

  1. Recommended input conditions:
    • Specified high and low levels. See (VIH and VIL) in the Recommended Operating Conditions.
    • Inputs are overvoltage tolerant allowing them to go as high as 5.5 V at any valid VCC.
  2. Recommended output conditions:
    • Load currents must not exceed (IO max) per output.
    • Outputs can be pulled up to 30 V.

9.2.3 Application Curve

SN54LS06 SN74LS06 D001_sdls020.gif Figure 4. Propagation Delay vs Temperature
