9 Application and Implementation

NOTE

Information in the following applications sections is not part of the TI component specification, and TI does not warrant its accuracy or completeness. TI’s customers are responsible for determining suitability of components for their purposes. Customers should validate and test their design implementation to confirm system functionality.

9.1 Application Information

SN74LVC04A is a low-drive CMOS device that can be used for a multitude of bus interface type applications where output ringing is a concern. The low drive and slow edge rates minimize overshoot and undershoot on the outputs. The inputs can accept voltages to 3.6 V at any valid VCC making it Ideal for down translation.

9.2 Typical Application

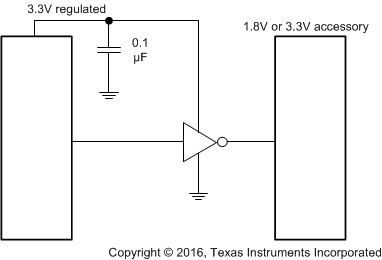

SN54LVC04A SN74LVC04A Typical_Application_Schematic.gif Figure 3. Typical Application Schematic

9.2.1 Design Requirements

This device uses CMOS technology and has balanced output drive. Take care to avoid bus contention, because it can drive currents that would exceed maximum limits. The high drive also creates fast edges into light loads, so routing and load conditions must be considered to prevent ringing.

9.2.2 Detailed Design Procedure

Recommended Input Conditions:

Recommend Output Conditions:

  • Load currents must not exceed 25 mA per output and 50 mA total for the part.
  • Outputs must not be pulled above VCC.

9.2.3 Application Curves

SN54LVC04A SN74LVC04A D001_tpdvsVcc.gif Figure 4. Typical Application Curve
