6.3.6.7.3.3 Sampling Rate: 32 kHz or 29.4 kHz

Figure 6-47 shows the magnitude response and Figure 6-48 shows the pass-band ripple and phase deviation for a decimation filter with a sampling rate of 32 kHz or 29.4 kHz. Table 6-39 lists the specifications for a decimation filter with an 32-kHz or 29.4-kHz sampling rate.

TAA3040 Ultra-Low-Latency Decimation Filter Magnitude ResponseFigure 6-53 Ultra-Low-Latency Decimation Filter Magnitude Response

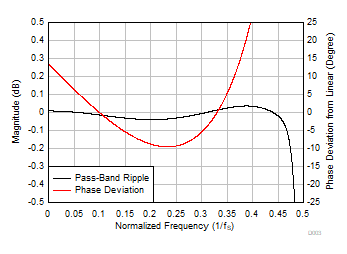

TAA3040 Ultra-Low-Latency Decimation Filter Pass-Band Ripple and Phase DeviationFigure 6-54 Ultra-Low-Latency Decimation Filter Pass-Band Ripple and Phase Deviation
Table 6-39 Ultra-Low-Latency Decimation Filter Specifications
PARAMETERTEST CONDITIONSMINTYPMAXUNIT
Pass-band rippleFrequency range is 0 to 0.457 × fS–0.040.04dB
Stop-band attenuationFrequency range is 0.6 × fS onwards88.3dB
Group delay or latencyFrequency range is 0 to 0.325 × fS5.21/fS
Group delay deviationFrequency range is 0 to 0.325 × fS–0.4920.4921/fS
Phase deviationFrequency range is 0 to 0.325 × fS–9.513.5Degrees
