7.4.1 PDM Input

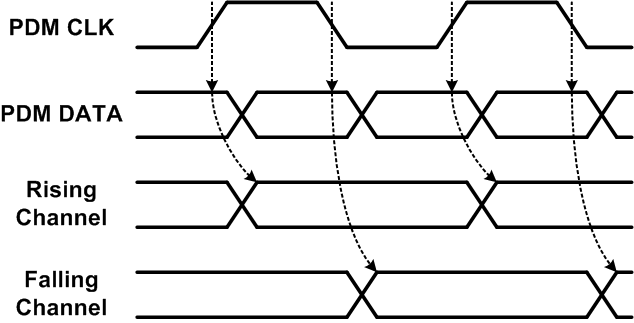

The TAS2563 provides one PDM input. Figure 7-11 below illustrates the double data rate nature of the PDM input. It has two interleaved PDM channels, one sampled by the rising edge and the other by the falling edge of the clock.

GUID-F3488B34-6BC5-403A-9CA4-E9F7D3D01BA6-low.gifFigure 7-11 PDM Waveform

The PDM inputs are sampled by the PDMCLK pin, which can be configured as either a PDM clock slave input or a PDM clock master output. The PDM_MIC_EDGE and PDM_MIC_SLV register bits select the sample clock edge and master/slave mode PDM inputs. In master mode the PDMCLK pin can disable the clocks (and drive a logic 0) by setting the PDM_GATE_PAD0 register bits low.

When configured as a clock slave, the PDM clock input does not require a specific phase relationship to the system clock (SBCLK in TDM/I2S Mode), but must be from the same source as audio sample rate. This is equivalent to 64/32/16 (~3 MHz) or 128/64/32 (~6 MHz) times a single/double/quadruple speed sample rate. The PDM rate is set by the PDM_RATE_PAD0 .

When PDMCLK pin is configured as a clock master, the TAS2563 will output a 50% duty cycle clock of frequency that is set by the PDM_RATE_PAD0 and register bit (64/32/16 or 128/64/32 times a single/double/quadruple speed sample rate).

Table 7-18 PDM Clock Slave
PDM INPUT PINREGISTER BITVALUEMASTER/SLAVE
PDMDPDM_MIC_SLV
0
Master
1
Slave (default)
Table 7-19 PDM Master Mode Clock Gate
PDM CLOCK PINREGISTER BITVALUEGATING
PDMCLKPDM_GATE_PAD0
1
Gated Off (default)
0
Active
Table 7-20 PDM Input Sample Rate
PDM INPUT PINREGISTER BITSVALUESAMPLE RATE
PDMDPDM_RATE_PAD003.072 MHz (default)
1
6.144 MHz
Table 7-21 PDM MIC Enable
PDM_MIC_ENMAPPING
PDM_MIC2_EN= 0
Disable MIC2
PDM_MIC2_EN= 1
Enable MIC2
PDM_MIC1_EN= 0
Disable MIC1
PDM_MIC1_EN= 1
Enable MIC1
