SLOSE75B February   2022  – March 2023 TAS2780

PRODUCTION DATA

  1. Features
  2. Applications
  3. Description
  4. Revision History
  5. Pin Configuration and Functions
  6. Specifications
    1. 6.1 Absolute Maximum Ratings
    2. 6.2 ESD Ratings
    3. 6.3 Recommended Operating Conditions
    4. 6.4 Thermal Information
    5. 6.5 Electrical Characteristics
    6. 6.6 I2C Timing Requirements
    7. 6.7 TDM Port Timing Requirements
    8. 6.8 Typical Characteristics
  7. Parameter Measurement Information
  8. Detailed Description
    1. 8.1  Overview
    2. 8.2  Functional Block Diagram
    3. 8.3  Feature Description
      1. 8.3.1 Device Address Selection
      2. 8.3.2 Register Organization
    4. 8.4  Device Functional Modes
      1. 8.4.1  TDM Port
      2. 8.4.2  Playback Signal Path
        1. 8.4.2.1  High Pass Filter
        2. 8.4.2.2  Amplifier Inversion
        3. 8.4.2.3  Digital Volume Control and Amplifier Output Level
          1. 8.4.2.3.1 Safe Mode
        4. 8.4.2.4  VBAT1S Supply
        5. 8.4.2.5  Low Voltage Signaling (LVS)
        6. 8.4.2.6  Y-Bridge
        7. 8.4.2.7  Noise Gate
        8. 8.4.2.8  Supply Tracking Limiter with Brown Out Prevention

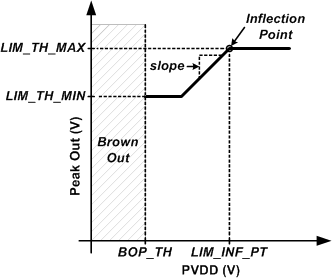

          1. 8.4.2.8.1 Supply Tracking Limiter (STL)
          2. 8.4.2.8.2 Brownout Prevention (BOP)
        9. 8.4.2.9  Low Battery Tracking Limiter (LBTL)
        10. 8.4.2.10 Inter Chip Gain Alignment (ICGA)
          1. 8.4.2.10.1 Inter-Chip Communication (ICC) Pin
        11. 8.4.2.11 Class-D Settings
          1. 8.4.2.11.1 Synchronization
          2. 8.4.2.11.2 Output Slew Rate Control
      3. 8.4.3  SAR ADC
      4. 8.4.4  Current and Voltage (IV) Sense
      5. 8.4.5  Post Filter Feed-Back (PFFB)
      6. 8.4.6  Load Diagnostics
      7. 8.4.7  Thermal Foldback
      8. 8.4.8  Over Power Protection
      9. 8.4.9  Low Battery Protection
      10. 8.4.10 Clocks and PLL
      11. 8.4.11 Ultrasonic
      12. 8.4.12 Echo Reference
    5. 8.5  Operational Modes
      1. 8.5.1 Hardware Shutdown
      2. 8.5.2 Mode Control and Software Reset
      3. 8.5.3 Software Shutdown
      4. 8.5.4 Mute Mode
      5. 8.5.5 Active Mode
      6. 8.5.6 Diagnostic Mode
      7. 8.5.7 Noise Gate Mode
    6. 8.6  Faults and Status
      1. 8.6.1 Faults and Status Over TDM
      2. 8.6.2 Temperature Warnings
    7. 8.7  Power Sequencing Requirements
    8. 8.8  Digital Input Pull Downs
    9. 8.9  Register Map
      1. 8.9.1   Register Summary Table Page=0x00
      2. 8.9.2   Register Summary Table Page=0x01
      3. 8.9.3   Register Summary Table Page=0x04
      4. 8.9.4   Register Summary Table Page=0xFD
      5. 8.9.5   Note and Legend
      6. 8.9.6   PAGE (page=0x00 address=0x00) [reset=00h]
      7. 8.9.7   SW_RESET (page=0x00 address=0x01) [reset=00h]
      8. 8.9.8   MODE_CTRL (page=0x00 address=0x02) [reset=1Ah]
      9. 8.9.9   CHNL_0 (page=0x00 address=0x03) [reset=28h]
      10. 8.9.10  DC_BLK0 (page=0x00 address=0x04) [reset=21h]
      11. 8.9.11  DC_BLK1 (page=0x00 address=0x05) [reset=41h]
      12. 8.9.12  MISC_CFG1 (page=0x00 address=0x06) [reset=00h]
      13. 8.9.13  MISC_CFG2 (page=0x00 address=0x07) [reset=20h]
      14. 8.9.14  TDM_CFG0 (page=0x00 address=0x08) [reset=09h]
      15. 8.9.15  TDM_CFG1 (page=0x00 address=0x09) [reset=02h]
      16. 8.9.16  TDM_CFG2 (page=0x00 address=0x0A) [reset=0Ah]
      17. 8.9.17  LIM_MAX_ATTN (page=0x00 address=0x0B) [reset=80h]
      18. 8.9.18  TDM_CFG3 (page=0x00 address=0x0C) [reset=10h]
      19. 8.9.19  TDM_CFG4 (page=0x00 address=0x0D) [reset=13h]
      20. 8.9.20  TDM_CFG5 (page=0x00 address=0x0E) [reset=42h]
      21. 8.9.21  TDM_CFG6 (page=0x00 address=0x0F) [reset=40h]
      22. 8.9.22  TDM_CFG7 (page=0x00 address=0x10) [reset=04h]
      23. 8.9.23  TDM_CFG8 (page=0x00 address=0x11) [reset=05h]
      24. 8.9.24  TDM_CFG9 (page=0x00 address=0x12) [reset=06h]
      25. 8.9.25  TDM_CFG10 (page=0x00 address=0x13) [reset=08h]
      26. 8.9.26  TDM_CFG11 (page=0x00 address=0x14) [reset=0Ah]
      27. 8.9.27  ICC_CNFG2 (page=0x00 address=0x15) [reset=00h]
      28. 8.9.28  TDM_CFG12 (page=0x00 address=0x16) [reset=12h]
      29. 8.9.29  ICLA_CFG0 (page=0x00 address=0x17) [reset=0Ch]
      30. 8.9.30  ICLA_CFG1 (page=0x00 address=0x18) [reset=00h]
      31. 8.9.31  DG_0 (page=0x00 address=0x19) [reset=0Dh]
      32. 8.9.32  DVC (page=0x00 address=0x1A) [reset=00h]
      33. 8.9.33  LIM_CFG0 (page=0x00 address=0x1B) [reset=62h]
      34. 8.9.34  LIM_CFG1 (page=0x00 address=0x1C) [reset=32h]
      35. 8.9.35  BOP_CFG0 (page=0x00 address=0x1D) [reset=40h]
      36. 8.9.36  BOP_CFG1 (page=0x00 address=0x1E) [reset=32h]
      37. 8.9.37  BOP_CFG2 (page=0x00 address=0x1F) [reset=02h]
      38. 8.9.38  BOP_CFG3 (page=0x00 address=0x20) [reset=06h]
      39. 8.9.39  BOP_CFG4 (page=0x00 address=0x21) [reset=2Ch]
      40. 8.9.40  BOP_CFG5 (page=0x00 address=0x22) [reset=4Ch]
      41. 8.9.41  BOP_CFG6 (page=0x00 address=0x23) [reset=20h]
      42. 8.9.42  BOP_CFG7 (page=0x00 address=0x24) [reset=02h]
      43. 8.9.43  BOP_CFG8 (page=0x00 address=0x25) [reset=06h]
      44. 8.9.44  BOP_CFG9 (page=0x00 address=0x26) [reset=32h]
      45. 8.9.45  BOP_CFG10 (page=0x00 address=0x27) [reset=46h]
      46. 8.9.46  BOP_CFG11 (page=0x00 address=0x28) [reset=20h]
      47. 8.9.47  BOP_CFG12 (page=0x00 address=0x29) [reset=02h]
      48. 8.9.48  BOP_CFG13 (page=0x00 address=0x2A) [reset=06h]
      49. 8.9.49  BOP_CFG14 (page=0x00 address=0x2B) [reset=38h]
      50. 8.9.50  BOP_CFG15 (page=0x00 address=0x2C) [reset=40h]
      51. 8.9.51  BOP_CFG17 (page=0x00 address=0x2D) [reset=20h]
      52. 8.9.52  BOP_CFG18 (page=0x00 address=0x2E) [reset=02h]
      53. 8.9.53  BOP_CFG19 (page=0x00 address=0x2F) [reset=06h]
      54. 8.9.54  BOP_CFG20 (page=0x00 address=0x30) [reset=3Eh]
      55. 8.9.55  BOP_CFG21 (page=0x00 address=0x31) [reset=37h]
      56. 8.9.56  BOP_CFG22 (page=0x00 address=0x32) [reset=20h]
      57. 8.9.57  BOP_CFG23 (page=0x00 address=0x33) [reset=FFh]
      58. 8.9.58  BOP_CFG24 (page=0x00 address=0x34) [reset=E6h]
      59. 8.9.59  NG_CFG0 (page=0x00 address=0x35) [reset=BDh]
      60. 8.9.60  NG_CFG1 (page=0x00 address=0x36) [reset=ADh]
      61. 8.9.61  LVS_CFG0 (page=0x00 address=0x37) [reset=A8h]
      62. 8.9.62  DIN_PD (page=0x00 address=0x38) [reset=03h]
      63. 8.9.63  INT_MASK0 (page=0x00 address=0x3B) [reset=FCh]
      64. 8.9.64  INT_MASK1 (page=0x00 address=0x3C) [reset=BFh]
      65. 8.9.65  INT_MASK4 (page=0x00 address=0x3D) [reset=DFh]
      66. 8.9.66  INT_MASK2 (page=0x00 address=0x40) [reset=F6h]
      67. 8.9.67  INT_MASK3 (page=0x00 address=0x41) [reset=00h]
      68. 8.9.68  INT_LIVE0 (page=0x00 address=0x42) [reset=00h]
      69. 8.9.69  INT_LIVE1 (page=0x00 address=0x43) [reset=00h]
      70. 8.9.70  INT_LIVE1_0 (page=0x00 address=0x44) [reset=00h]
      71. 8.9.71  INT_LIVE2 (page=0x00 address=0x47) [reset=00h]
      72. 8.9.72  INT_LIVE3 (page=0x00 address=0x48) [reset=00h]
      73. 8.9.73  INT_LTCH0 (page=0x00 address=0x49) [reset=00h]
      74. 8.9.74  INT_LTCH1 (page=0x00 address=0x4A) [reset=00h]
      75. 8.9.75  INT_LTCH1_0 (page=0x00 address=0x4B) [reset=00h]
      76. 8.9.76  INT_LTCH2 (page=0x00 address=0x4F) [reset=00h]
      77. 8.9.77  INT_LTCH3 (page=0x00 address=0x50) [reset=00h]
      78. 8.9.78  INT_LTCH4 (page=0x00 address=0x51) [reset=00h]
      79. 8.9.79  VBAT_MSB (page=0x00 address=0x52) [reset=00h]
      80. 8.9.80  VBAT_LSB (page=0x00 address=0x53) [reset=00h]
      81. 8.9.81  PVDD_MSB (page=0x00 address=0x54) [reset=00h]
      82. 8.9.82  PVDD_LSB (page=0x00 address=0x55) [reset=00h]
      83. 8.9.83  TEMP (page=0x00 address=0x56) [reset=00h]
      84. 8.9.84  INT_CLK_CFG (page=0x00 address=0x5C) [reset=19h]
      85. 8.9.85  MISC_CFG3 (page=0x00 address=0x5D) [reset=80h]
      86. 8.9.86  CLOCK_CFG (page=0x00 address=0x60) [reset=0Dh]
      87. 8.9.87  IDLE_IND (page=0x00 address=0x63) [reset=48]
      88. 8.9.88  SAR_SAMP (page=0x00 address=0x64) [reset=84h]
      89. 8.9.89  MISC_CFG4 (page=0x00 address=0x65) [reset=08]
      90. 8.9.90  IDLE_CFG (page=0x00 address=0x67) [reset=00h]
      91. 8.9.91  CLK_CFG (page=0x00 address=0x68) [reset=7Fh]
      92. 8.9.92  LV_EN_CFG (page=0x00 address=0x6A) [reset=12h]
      93. 8.9.93  NG_CFG2 (page=0x00 address=0x6B) [reset=43h]
      94. 8.9.94  NG_CFG3 (page=0x00 address=0x6C) [reset=00h]
      95. 8.9.95  NG_CFG4 (page=0x00 address=0x6D) [reset=00h]
      96. 8.9.96  NG_CFG5 (page=0x00 address=0x6E) [reset=1Ah]
      97. 8.9.97  NG_CFG6 (page=0x00 address=0x6F) [reset=00h]
      98. 8.9.98  NG_CFG7 (page=0x00 address=0x70) [reset=96h]
      99. 8.9.99  PVDD_UVLO (page=0x00 address=0x71) [reset=02h]
      100. 8.9.100 DMD (page=0x00 address=0x73) [reset=00h]
      101. 8.9.101 I2C_CKSUM (page=0x00 address=0x7E) [reset=00h]
      102. 8.9.102 BOOK (page=0x00 address=0x7F) [reset=00h]
      103. 8.9.103 INIT_0 (page=0x01 address=0x17) [reset=D0h]
      104. 8.9.104 LSR (page=0x01 address=0x19) [reset=40h]
      105. 8.9.105 INIT_1 (page=0x01 address=0x21) [reset=08h]
      106. 8.9.106 INIT_2 (page=0x01 address=0x35) [reset=75h]
      107. 8.9.107 INT_LDO (page=0x01 address=0x36) [reset=08h]
      108. 8.9.108 SDOUT_HIZ_1 (page=0x01 address=0x3D) [reset=00h]
      109. 8.9.109 SDOUT_HIZ_2 (page=0x01 address=0x3E) [reset=00h]
      110. 8.9.110 SDOUT_HIZ_3 (page=0x01 address=0x3F) [reset=00h]
      111. 8.9.111 SDOUT_HIZ_4 (page=0x01 address=0x40) [reset=00h]
      112. 8.9.112 SDOUT_HIZ_5 (page=0x01 address=0x41) [reset=00h]
      113. 8.9.113 SDOUT_HIZ_6 (page=0x01 address=0x42) [reset=00h]
      114. 8.9.114 SDOUT_HIZ_7 (page=0x01 address=0x43) [reset=00h]
      115. 8.9.115 SDOUT_HIZ_8 (page=0x01 address=0x44) [reset=00h]
      116. 8.9.116 SDOUT_HIZ_9 (page=0x01 address=0x45) [reset=00h]
      117. 8.9.117 TG_EN (page=0x01 address=0x47) [reset=AB]
      118. 8.9.118 EDGE_CTRL (page=0x01 address=0x4C) [reset=00h]
      119. 8.9.119 DG_DC_VAL1 (page=0x04 address=0x08) [reset=40h]
      120. 8.9.120 DG_DC_VAL2 (page=0x04 address=0x09) [reset=26h]
      121. 8.9.121 DG_DC_VAL3 (page=0x04 address=0x0A) [reset=40h]
      122. 8.9.122 DC_DG_VAL4 (page=0x04 address=0x0B) [reset=00h]
      123. 8.9.123 LIM_TH_MAX1 (page=0x04 address=0x0C) [reset=68h]
      124. 8.9.124 LIM_TH_MAX2 (page=0x04 address=0x0D) [reset=00h]
      125. 8.9.125 LIM_TH_MAX3 (page=0x04 address=0x0E) [reset=00h]
      126. 8.9.126 LIM_TH_MAX4 (page=0x04 address=0x0F) [reset=00h]
      127. 8.9.127 LIM_TH_MIN1 (page=0x04 address=0x10) [reset=28h]
      128. 8.9.128 LIM_TH_MIN2 (page=0x04 address=0x11) [reset=00h]
      129. 8.9.129 LIM_TH_MIN3 (page=0x04 address=0x12) [reset=00h]
      130. 8.9.130 LIM_TH_MIN4 (page=0x04 address=0x13) [reset=00h]
      131. 8.9.131 LIM_INF_PT1 (page=0x04 address=0x14) [reset=56h]
      132. 8.9.132 LIM_INF_PT2 (page=0x04 address=0x15) [reset=66h]
      133. 8.9.133 LIM_INF_PT3 (page=0x04 address=0x16) [reset=66h]
      134. 8.9.134 LIM_INF_PT4 (page=0x04 address=0x17) [reset=00h]
      135. 8.9.135 LIM_SLOPE1 (page=0x04 address=0x18) [reset=10h]
      136. 8.9.136 LIM_SLOPE2 (page=0x04 address=0x19) [reset=00h]
      137. 8.9.137 LIM_SLOPE3 (page=0x04 address=0x1A) [reset=00h]
      138. 8.9.138 LIM_SLOPE4 (page=0x04 address=0x1B) [reset=00h]
      139. 8.9.139 TF_HLD1 (page=0x04 address=0x1C) [reset=00h]
      140. 8.9.140 TF_HLD2 (page=0x04 address=0x1D) [reset=00h]
      141. 8.9.141 TF_HLD3 (page=0x04 address=0x1E) [reset=64h]
      142. 8.9.142 TF_HLD4 (page=0x04 address=0x1F) [reset=00h]
      143. 8.9.143 TF_RLS1 (page=0x04 address=0x20) [reset=40h]
      144. 8.9.144 TF_RLS2 (page=0x04 address=0x21) [reset=BDh]
      145. 8.9.145 TF_RLS3 (page=0x04 address=0x22) [reset=B8h]
      146. 8.9.146 TF_RLS4 (page=0x04 address=0x23) [reset=00h]
      147. 8.9.147 TF_SLOPE1 (page=0x04 address=0x24) [reset=04h]
      148. 8.9.148 TF_SLOPE2 (page=0x04 address=0x25) [reset=08h]
      149. 8.9.149 TF_SLOPE3 (page=0x04 address=0x26) [reset=89h]
      150. 8.9.150 TF_SLOPE4 (page=0x04 address=0x27) [reset=00h]
      151. 8.9.151 TF_TEMP_TH1 (page=0x04 address=0x28) [reset=39h]
      152. 8.9.152 TF_TEMP_TH2 (page=0x04 address=0x29) [reset=80h]
      153. 8.9.153 TF_TEMP_TH3 (page=0x04 address=0x2A) [reset=00h]
      154. 8.9.154 TF_TEMP_TH4 (page=0x04 address=0x2B) [reset=00h]
      155. 8.9.155 TF_MAX_ATTN1 (page=0x04 address=0x2C) [reset=2Dh]
      156. 8.9.156 TF_MAX_ATTN2 (page=0x04 address=0x2D) [reset=6Ah]
      157. 8.9.157 TF_MAX_ATTN3 (page=0x04 address=0x2E) [reset=86h]
      158. 8.9.158 TF_MAX_ATTN4 (page=0x04 address=0x2F) [reset=00h]
      159. 8.9.159 LD_CFG0 (page=0x04 address=0x40) [reset=03h]
      160. 8.9.160 LD_CFG1 (page=0x04 address=0x41) [reset=20h]
      161. 8.9.161 LD_CFG2 (page=0x04 address=0x42) [reset=00h]
      162. 8.9.162 LD_CFG3 (page=0x04 address=0x43) [reset=00h]
      163. 8.9.163 LD_CFG4 (page=0x04 address=0x44) [reset=00h]
      164. 8.9.164 LD_CFG5 (page=0x04 address=0x45) [reset=20h]
      165. 8.9.165 LD_CFG6 (page=0x04 address=0x46) [reset=00h]
      166. 8.9.166 LD_CFG7 (page=0x04 address=0x47) [reset=00h]
      167. 8.9.167 CLD_EFF_1 (page=0x04 address=0x48) [reset=6Ch]
      168. 8.9.168 CLD_EFF_2 (page=0x04 address=0x49) [reset=CCh]
      169. 8.9.169 CLD_EFF_3 (page=0x04 address=0x4A) [reset=CDh]
      170. 8.9.170 CLD_EFF_4 (page=0x04 address=0x4B) [reset=00h]
      171. 8.9.171 LDG_RES1 (page=0x04 address=0x4C) [reset=00h]
      172. 8.9.172 LDG_RES2 (page=0x04 address=0x4D) [reset=00h]
      173. 8.9.173 LDG_RES3 (page=0x04 address=0x4E) [reset=00h]
      174. 8.9.174 LDG_RES4 (page=0x04 address=0x4F) [reset=00h]
      175. 8.9.175 INIT_3 (page=0xFD address=0x3E) [reset=45h]
    10. 8.10 SDOUT Equations
  9. Application and Implementation
    1. 9.1 Application Information
    2. 9.2 Typical Application
    3. 9.3 Design Requirements
    4. 9.4 Detailed Design Procedure
      1. 9.4.1 Mono/Stereo Configuration
      2. 9.4.2 EMI Passive Devices
    5. 9.5 Application Curves
  10. 10Initialization Set Up
    1. 10.1 Initial Device Configuration - Power Up and Software Reset
    2. 10.2 Initial Device Configuration - PWR_MODE0
    3. 10.3 Initial Device Configuration - PWR_MODE1
    4. 10.4 Initial Device Configuration - PWR_MODE2
    5. 10.5 Initial Device Configuration - PWR_MODE3
    6. 10.6 Device Configuration - 44.1 kHz
    7. 10.7 Over Power Protection - OCP Programming
    8. 10.8 DSP Loopback
  11. 11Power Supply Recommendations
    1. 11.1 Power Supply Modes
  12. 12Layout
    1. 12.1 Layout Guidelines
    2. 12.2 Layout Example
  13. 13Device and Documentation Support
    1. 13.1 Receiving Notification of Documentation Updates
    2. 13.2 Community Resources
    3. 13.3 Trademarks
  14. 14Mechanical, Packaging, and Orderable Information

Package Options

Mechanical Data (Package|Pins)
Thermal pad, mechanical data (Package|Pins)
Orderable Information
Supply Tracking Limiter (STL)

The TAS2780 monitors PVDD supply voltage and the audio signal to automatically decrease gain when the audio signal peaks exceed a programmable threshold. This helps prevent clipping and extends playback time through end of charge battery conditions.

The Supply Tracking Limiter feature is enabled by setting the LIM_EN bit register to high.

Configurable attack rate, hold time and release rate are provided to shape the dynamic response of the limiter (LIM_ATK_RT[3:0], LIM_HLD_TM[2:0] and LIM_RLS_RT [3:0] register bits).

A maximum level of attenuation applied by the limiter is configurable via the LIM_MAX_ATTN[3:0] register bits. If the limiter mode is attacking and if it reaches the maximum attenuation, gain will not be reduced any further.

The limiter begins reducing gain when the output signal level is greater than the limiter threshold. The limiter can be configured to track PVDD below a programmable inflection point with a minimum threshold value. Figure 8-5 below shows the limiter configured to limit to a constant level regardless of PVDD level. To achieve this behavior, set the limiter maximum threshold to the desired level via the LIM_TH_MAX[31:0] register bits. Set the limiter inflection point (register bits LIM_INF_PT[31:0]) below the minimum allowable PVDD setting. The limiter minimum threshold, set by register bits LIM_TH_MIN[31:0], does not impact limiter behavior in this use case.

GUID-85D40A1E-02A3-42DB-A36D-606EDA899A19-low.gifFigure 8-5 Limiter with Fixed Threshold
GUID-2864A533-2055-4150-AB1C-664A14E8CD38-low.gifFigure 8-7 Limiter with Dynamic Threshold
GUID-52B3EAEF-040B-4E14-9B17-674A6BB7EB69-low.gifFigure 8-6 Limiter with Inflection Point
GUID-C0A549F2-9CCA-4E04-9465-47BC389A7CC5-low.gifFigure 8-8 Limiter with Inflection Point and Minimum Threshold

Figure 8-6 shows how to configure the limiter to track PVDD supply below a certain level without setting a minimum threshold. Set the LIM_TH_MAX[31:0] register bits to the desired threshold and LIM_INF_PT[31:0] register bits to the desired inflection point where the limiter will begin reducing the threshold with PVDD. The LIM_SLOPE[31:0] register bits can be used to change the slope of the limiter tracking with PVDD. The default value of 1 V/V will reduce the threshold 1 V for every 1 V of drop in PVDD. More aggressive tracking slopes can be programmed if desired. Program the LIM_TH_MIN[31:0] bits below the minimum PVDD to prevent the limiter from having a minimum threshold reduction when tracking PVDD supply.

The limiter with a supply tracking slope can be configured in an alternate way. By setting LIM_HR_EN register bit to high , a headroom can be specified as a percentage of the supply voltage using a 1V/V slope by setting LIM_DHR[4:0] register bits. For example if a headroom of -10% is specified, the peak output voltage will be set to be 10% higher than PVDD. In this use case presented in Figure 8-7 the limiting begins for signals above the supply voltage and will result in a fixed clipping. If a positive headroom of +10% is specified the peak output voltage will be dynamically set 10% below the current PVDD. In this use case the limiting will begin at signal levels lower than the supply voltage and will prevent clipping from occurring.

To achieve a limiter that tracks PVDD only up to a minimum threshold, configure the limiter LIM_TH_MAX [31:0] and LIM_SLOPE[31:0] register bits as in the previous examples. Then, additionally set the LIM_TH_MIN[31:0] register bits to the desired minimum threshold. Supply voltage below this minimum threshold will not continue to decrease the signal output voltage. This is shown in Figure 8-8.

By setting register bit LIM_HR_EN to low the limiter mechanism depends on settings for maximum/minimum thresholds, inflection point and slope. Once this bit is set high the limiter dynamic headroom is enabled.

When a BOP (Brownout Prevention) event occurs the limiter updates can be paused (LIM_PDB register bit set to high) until the BOP fully releases. This can be used to prevent undesired interactions between both protection systems.
