7.5.3.1 Startup Procedures

  1. Configure ADR/ FAULT pin with proper setting for I2C device address.
  2. Bring up power supplies (it does not matter if PVDD or DVDD comes up first).
  3. Once all power supplies are stable, bring up the PDN HIGH, wait 5ms ,then start SCLK, LRCLK.
  4. Once I2S clock are stable, configure the device via the I2C control port based on the user cases (Make sure the PDN pin = HIGH before I2C control port operating).
  5. The device is now in normal operation.

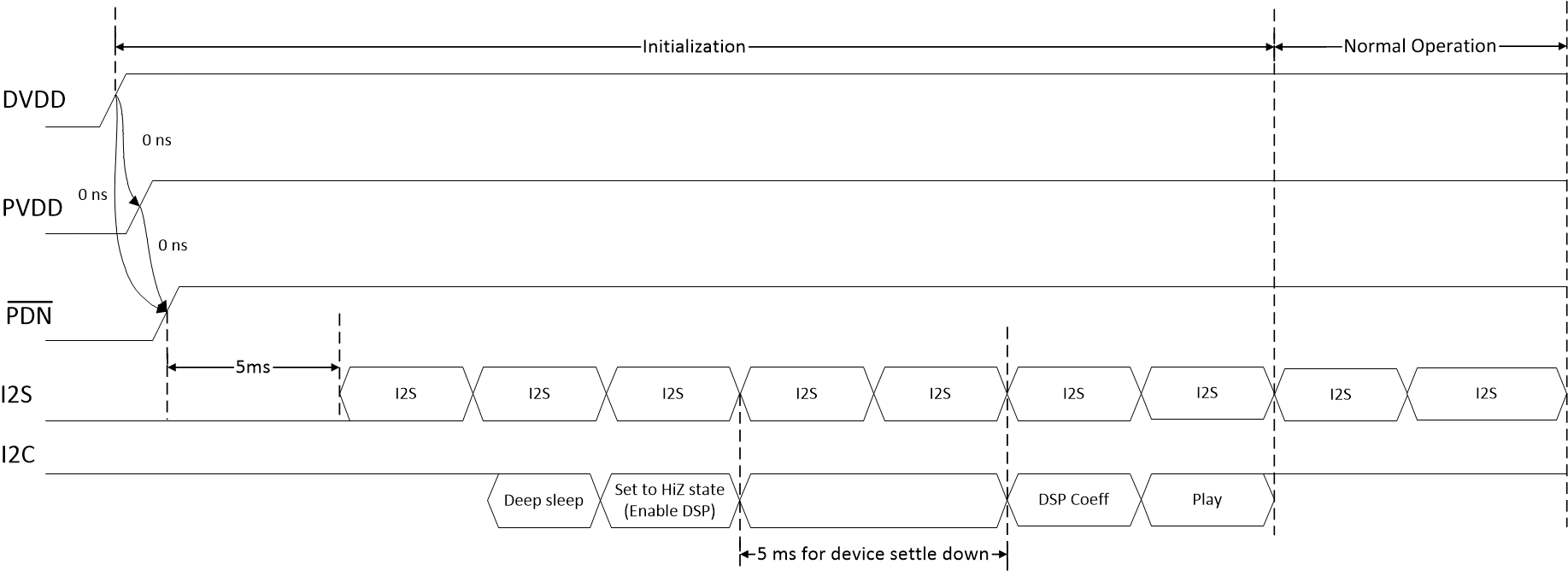

TAS5815 Startup sequenceFigure 7-14 Startup sequence
