7.7.4 Parallel Bridge Tied Load (PBTL) Configuration With BD Modulation

Free-air room temperature 25°C (unless otherwise noted) Measurements were made using TAS5825PEVM board and Audio Precision System 2722 with Analog Analyzer filter set to 20-kHz brickwall filter. All measurements taken with audio frequency set to 1 kHz and device PWM frequency set to 768 kHz, the LC filter used was 4.7 μH / 0.68 μF （Pre-Filter PBTL, the merging of the two output channels in this device can be done before the inductor portion of the output filter, see details in Section 10.2.6）, unless otherwise noted.

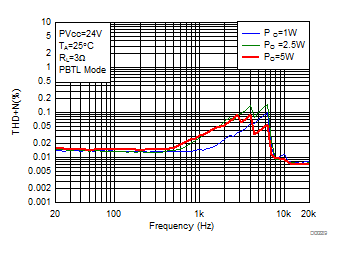

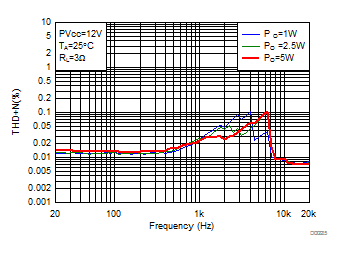

BD Modulation PO = 1W,2.5W,5W
FSW = 768 kHz Load = 3 Ω PBTL Mode
Figure 7-72 THD+N vs Frequency-PBTL
BD Modulation PO = 1W,2.5W,5W
FSW = 768 kHz Load = 3 Ω PBTL Mode
Figure 7-74 THD+N vs Frequency-PBTL
BD Modulation PO = 1W,2.5W,5W
FSW = 768 kHz Load = 3 Ω PBTL Mode
Figure 7-76 THD+N vs Frequency-PBTL

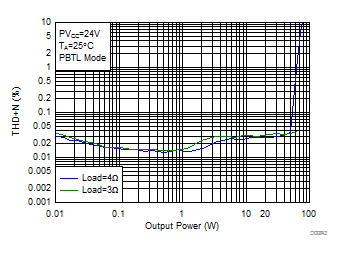

BD Modulation
FSW = 768 kHz Load = 3 Ω, 4 Ω PBTL Mode

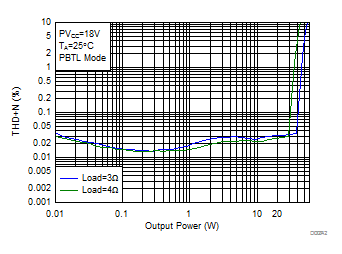

Figure 7-78 THD+N vs Output Power-PBTL
BD Modulation
FSW = 768 kHz Load = 3 Ω, 4 Ω PBTL Mode
Figure 7-80 THD+N vs Output Power-PBTL

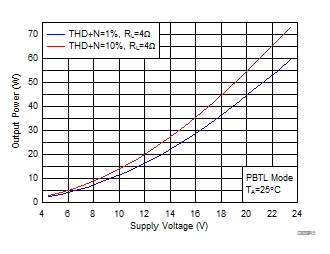

BD Modulation
FSW = 768 kHz Load = 4 Ω PBTL Mode
Figure 7-82 Output Power vs Supply Voltage
BD Modulation
FSW = 768 kHzLoad = 3 Ω, PBTL
5 V EVM Battery with default PPC3 setting (-5.5 dB AGAIN)
Figure 7-84 Efficiency vs Output Power
BD Modulation
FSW = 384 kHz Load=4Ω, PBTL 5 V Battery Input approximately 5 V – 16 V Boost Default PPC3 Setting (-5.5 dB AGAIN)
Figure 7-86 EVM Efficiency Comparison ON/OFF Hybrid-Pro

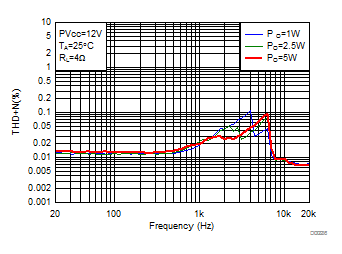

BD Modulation PO = 1W,2.5W,5W
FSW = 768 kHz Load = 4 Ω PBTL Mode
Figure 7-73 THD+N vs Frequency-PBTL
BD Modulation PO = 1W,2.5W,5W
FSW = 768 kHz Load = 4 Ω PBTL Mode
Figure 7-75 THD+N vs Frequency-PBTL
BD Modulation PO = 1W,2.5W,5W
FSW = 768 kHz Load = 4 Ω PBTL Mode
Figure 7-77 THD+N vs Frequency-PBTL
BD Modulation
FSW = 768 kHz Load = 3 Ω, 4 Ω PBTL Mode
Figure 7-79 THD+N vs Output Power-PBTL

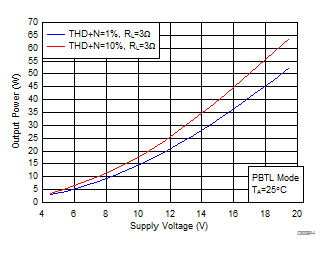

BD Modulation
FSW = 768 kHz Load = 3 Ω PBTL Mode
Figure 7-81 Output Power vs Supply Voltage

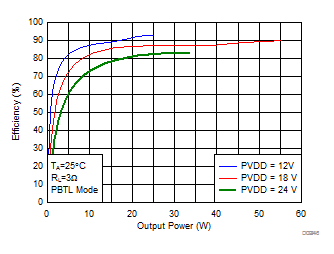

BD Modulation
FSW = 768 kHz Load = 3 Ω PBTL Mode
Figure 7-83 Efficiency vs Output Power

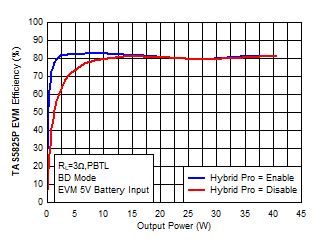

BD Modulation
FSW = 384 kHz Load=3Ω, PBTL 5 V Battery Input approximately 5 V – 16 V Boost Default PPC3 Setting (-5.5 dB AGAIN)
Figure 7-85 EVM Efficiency Comparison ON/OFF Hybrid-Pro

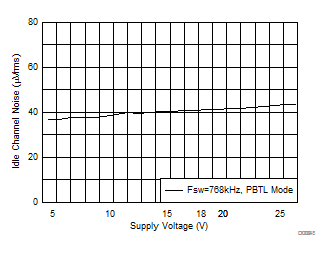

BD Modulation
FSW = 768 kHz Load =4Ω PBTL Mode
Figure 7-87 Idle Channel Noise vs Supply Voltage
