9.3.5.1 Spread-Spectrum

Spread-spectrum modulation is a PWM modulation technique that reduces the peaks seen in EMI measurements by varying the output PWM frequency. The minimum and maximum spread-spectrum frequencies are adjustable using the spread-spectrum registers discuss below.

To enable spread-spectrum follow the procedure below:

  1. The TAS6424E-Q1 must be correctly powered and in Hi-Z mode.
  2. While in Hi-Z mode, configure and enable spread-spectrum using I2C.
  3. The spread-spectrum settings are retained while PVDD and VBAT are applied, but must be enabled again if PVDD or VBAT are removed or invalid.
The spread spectrum algorithm uses a triangle waveform to vary the frequency around the fundamental. See the figure below.

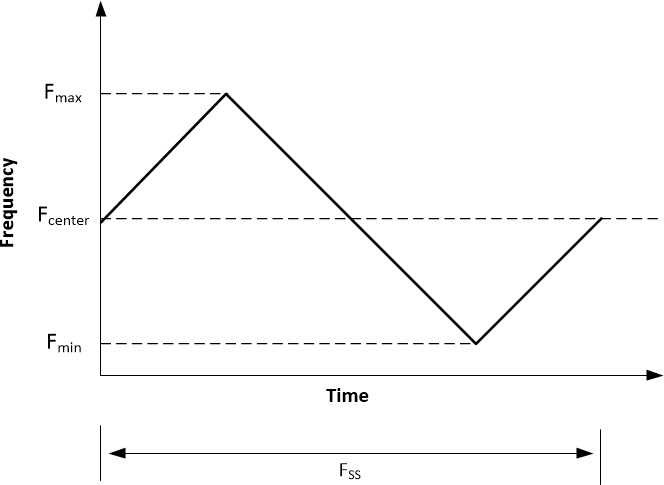

GUID-20211029-SS0I-TGMZ-MMSQ-9TQ18PHVXDC3-low.gif Figure 9-6 Spread-Spectrum Algorithm Diagram

The spread-specrtum registers are calculated using the relationships below. Note that it's recommended to start with SS_PRE_DIV = 0x1F for most use cases.

  • SS_PRE_DIV = (256 * FS / Fcemter) - 2) / 2
  • SS_AMP = 64 * (Fcenter - Fmin) / Fcenter
  • SS_STEP = 16 * 4 * SS_AMP * FSS / Fcenter

where

  • FS - audio sampling frequency
  • Fmax - maximum spread-spectrum frequency
  • Fmin - minimum spread-spectrum frequency
  • Fcenter - spread-spectrum center frequency
  • FSS - spread-spectrum triangle waveform frequency
  • FPWM_min - minimum PWM output frequency with spread-spectrum enabled
  • FPWM_max - maximum PWM output frequency with spread-spectrum enabled

The following sample code enables spread-spectrum for 48 kHz audio sample rate, 32-bit audio depth, TDM-8 and 2.1 MHz.

w D6 28 EA
w D6 77 82    // Enable SS, SS_AMPL = 2
w D6 78 1F    // SS_PRE_DIV = 31, Fcenter = 192 kHz
w D6 79 3F    // SS_STEP = 63

The follow equations calculate the output PWM frequency variation with the settings listed previously.

  • Fmin = 256 * FS / ((SS_PRE_DIV * 2 + 2) + SS_AMPL = 256 * 48 kHz / ((31 * 2 + 2) + 2) = 186.18 kHz
  • Fmax = 256 * FS / ((SS_PRE_DIV * 2 + 2) + SS_AMPL = 256 * 48 kHz / ((31 * 2 + 2) - 2) = 198.19 kHz
  • FPWM_min = Fmin * 11 = 186.18 kHz * 11 = 2.048 MHz
  • FPWM_max = Fmax * 11 = 198.19 kHz * 11 = 2.189 MHz
