10.2.1 BTL Application

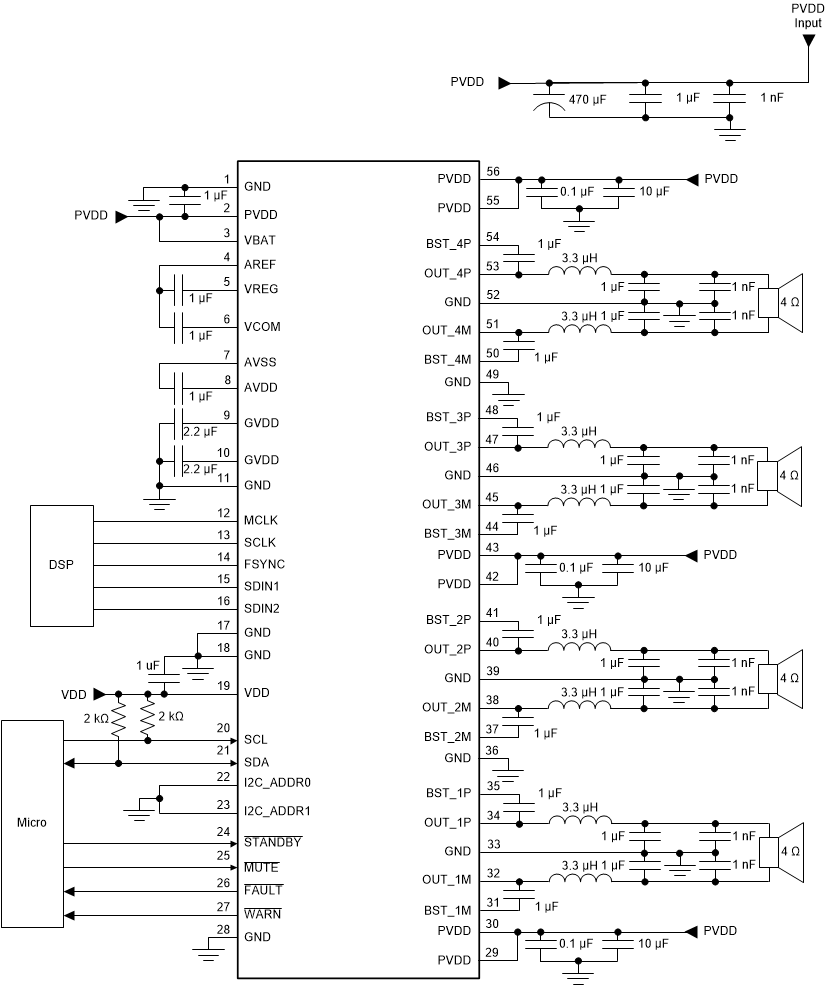

Figure 10-2 shows the schematic of a typical 4-channel solution for a head-unit application.

GUID-20200728-CA0I-DT7K-BLG8-LWXM99SB02TZ-low.gif Figure 10-2 Typical 4-Channel BTL Application Schematic
