7.6 Typical Characteristics

TA = 25 °C, VVDD = 3.3 V, VBAT = PVDD = 14.4 V, RL = 4 Ω, fIN = 1 kHz, fs = 48 kHz, fSW = 2.1 MHz, AES17 filter, default I2C settings, see Figure 10-2 and Figure 10-3 (unless otherwise noted)

PO = 1 W
Figure 7-1 Crosstalk vs Frequency
PO = 1 W
Figure 7-3 VBAT PSRR vs Frequency
PO = 1 W fSW = 2.1 MHz
Figure 7-5 THD+N vs Frequency
fSW = 2.1 MHz
Figure 7-7 THD+N vs Power
10% THD
Figure 7-9 Output Power vs Supply Voltage
4 Ω fSW = 384 kHz

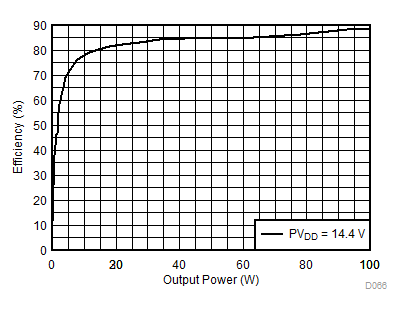

Figure 7-11 PVDD Power Efficiency vs Total Output Power
2 Ω fSW = 384 kHz
Figure 7-13 PVDD Power Efficiency vs Total Output Power

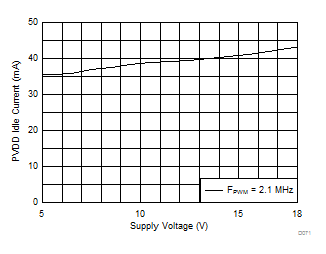

Figure 7-15 PVDD Idle Current vs Voltage
Figure 7-17 PVDD Standby Current vs Voltage
PO = 1 W fSW = 2.1 MHz

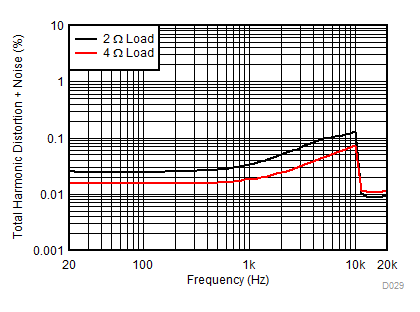

Figure 7-19 PBTL THD+N vs Frequency
fSW = 2.1 MHz

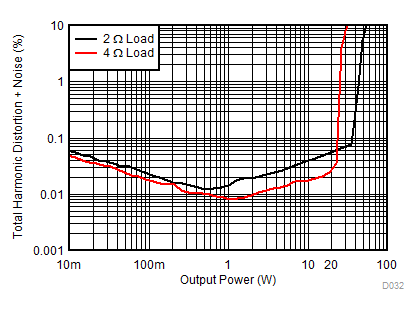

Figure 7-21 PBTL THD+N vs Power
10 % THD fSW = 2.1 MHz

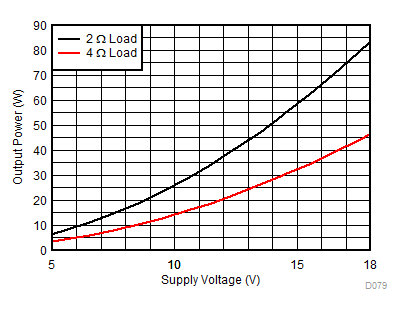

Figure 7-23 PBTL Output Power vs Voltage
fSW = 2.1 MHz
Figure 7-25 Power Dissipation vs Total Output Power
PO = 1 W
Figure 7-2 PVDD PSRR vs Frequency
PO = 1 W fSW = 384 kHz
Figure 7-4 THD+N vs Frequency
fSW = 384 kHz
Figure 7-6 THD+N vs Power
10% THD fSW = 384 kHz
Figure 7-8 Output Power vs Supply Voltage
A-weighted Noise fSW = 2.1 MHz
Figure 7-10 Noise vs Supply voltage
4 Ω fSW = 2.1 MHz
Figure 7-12 PVDD Power Efficiency vs Total Output Power
2 Ω fSW = 2.1 MHz
Figure 7-14 PVDD Power Efficiency vs Total Output Power
Figure 7-16 VBAT Idle Current vs Voltage
1 W fSW = 384 kHz
Figure 7-18 PBTL THD+N vs Frequency
fSW = 384 kHz
Figure 7-20 PBTL THD+N vs Power
10 % THD fSW = 384 kHz
Figure 7-22 PBTL Output Power vs Voltage
fSW = 384 kHz
Figure 7-24 Power Dissipation vs Total Output Power
