8.2 Functional Block Diagram

A. All I/Os are set to inputs at reset.
B. Pin numbers shown are for the RGJ package.
Figure 8-1 Positive Logic
A. On power up or reset, all registers return to default values.

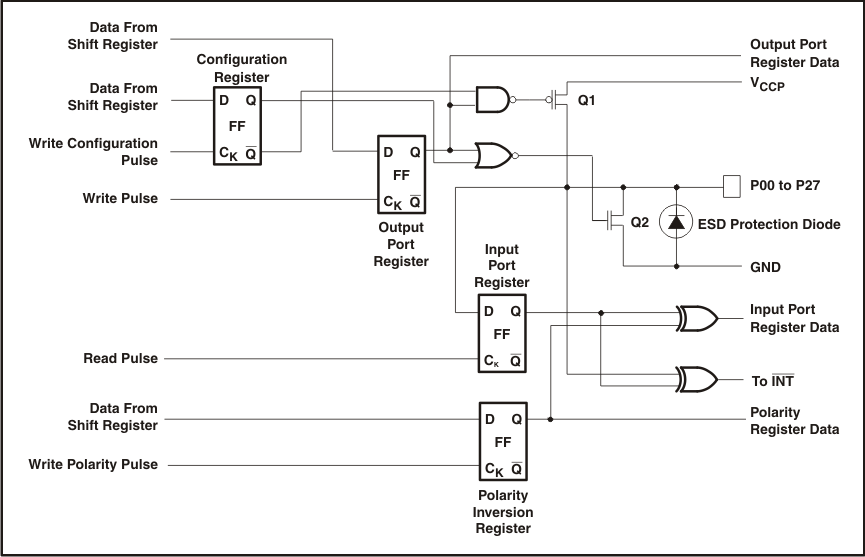

Figure 8-2 Simplified Schematic of P00 to P27
