Typical Characteristics

TA = 25°C (unless otherwise noted)

GUID-8370A941-6937-4B87-9BA0-A99A543BD721-low.gifFigure 6-1 Supply Current vs Temperature for Different Supply Voltage (VCC)
GUID-638A7F0C-9564-48D5-91AB-90DC2A8F49E4-low.gifFigure 6-3 Supply Current vs Supply Voltage for Different Temperature (TA)

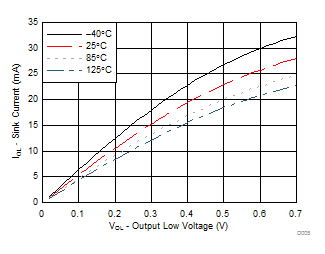

GUID-B4EF95FD-778B-441C-916A-996CDF7E1CA3-low.gifFigure 6-5 I/O Sink Current vs Output Low Voltage for Different Temperature (TA) for VCC = 1.8 V
GUID-90303BBA-453E-43EC-B288-AD3C8E964F6B-low.gifFigure 6-7 I/O Sink Current vs Output Low Voltage for Different Temperature (TA) for VCC = 3.3 V

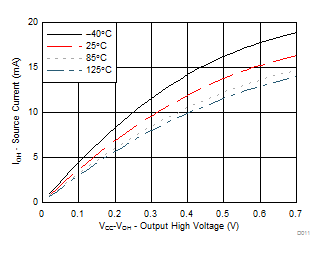

GUID-7BD73A2C-0A0F-450C-93FE-939571519031-low.gifFigure 6-9 I/O Source Current vs Output High Voltage for Different Temperature (TA) for VCC = 1.65 V
GUID-17BCF51C-85EB-4D6D-AF4D-E938D2390843-low.gifFigure 6-11 I/O Source Current vs Output High Voltage for Different Temperature (TA) for VCC = 2.5 V

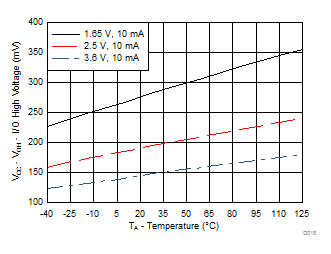

GUID-E7BEA2A4-62B0-4C08-B6D3-254D3C72D045-low.gifFigure 6-13 VCC – VOH Voltage vs Temperature for Different VCC
GUID-5A8D0507-9906-4E64-AC69-2BB1B84FDEAC-low.gifFigure 6-2 Standby Supply Current vs Temperature for Different Supply Voltage (VCC)
GUID-142AEDA1-6C77-4290-984D-3AAECFB24BF8-low.gifFigure 6-4 I/O Sink Current vs Output Low Voltage for Different Temperature (TA) for VCC = 1.65 V
GUID-14FED04B-4901-485C-A6E7-92AD4FC06ECD-low.gifFigure 6-6 I/O Sink Current vs Output Low Voltage for Different Temperature (TA) for VCC = 2.5 V
GUID-385251C4-863C-47CB-824B-C1CAC6C12A49-low.gifFigure 6-8 I/O Low Voltage vs Temperature for Different VCC and IOL

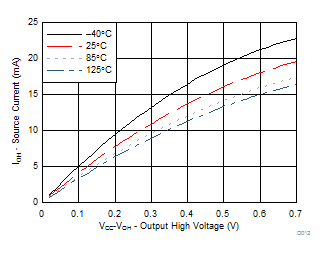

GUID-C6DD1F14-E005-4B02-8FE7-7B21CC78099A-low.gifFigure 6-10 I/O Source Current vs Output High Voltage for Different Temperature (TA) for VCC = 1.8 V
GUID-50013463-750A-43D9-A385-FD0ED03D9808-low.gifFigure 6-12 I/O Source Current vs Output High Voltage for Different Temperature (TA) for VCC = 3.3 V
GUID-AB9A8BD8-C25B-43F9-AE3A-E93646C97180-low.gifFigure 6-14 Δ ICC vs Temperature for Different VCC (VI = VCC – 0.6 V)
