7 Parameter Measurement Information

CL includes probe and jig capacitance.
All inputs are supplied by generators having the following characteristics: PRR ≤ 10 MHz, ZO = 50 Ω, tr/tf ≤ 30 ns.
All parameters and waveforms are not applicable to all devices.
Figure 7-1 I2C Interface Load Circuit and Voltage Waveforms
CL includes probe and jig capacitance.
All inputs are supplied by generators having the following characteristics: PRR ≤ 10 Hz, ZO = 50 Ω, tr/tf ≤ 30 ns.
All parameters and waveforms are not applicable to all devices.

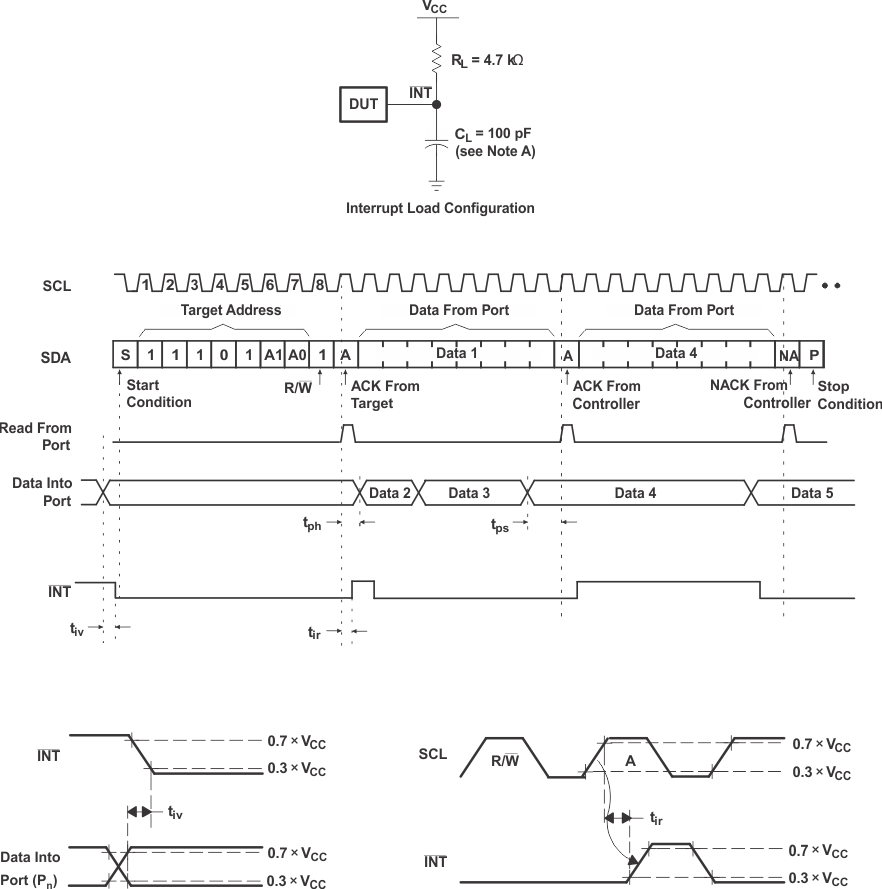

Figure 7-2 Interrupt Load Circuit and Voltage Waveforms
CL includes probe and jig capacitance.
tpv is measured from 0.7 × VCC on SCL to 50% I/O (Pn) output.
All inputs are supplied by generators having the following characteristics: PRR ≤ 10 MHz, ZO = 50 Ω, tr/tf ≤ 30 ns.
The outputs are measured one at a time, with one transition per measurement.
All parameters and waveforms are not applicable to all devices.
Figure 7-3 P-Port Load Circuit and Voltage Waveforms
CL includes probe and jig capacitance.
All inputs are supplied by generators having the following characteristics: PRR ≤ 10 MHz, ZO = 50 Ω, tr/tf ≤ 30 ns.
The outputs are measured one at a time, with one transition per measurement.
I/Os are configured as inputs.
All parameters and waveforms are not applicable to all devices.

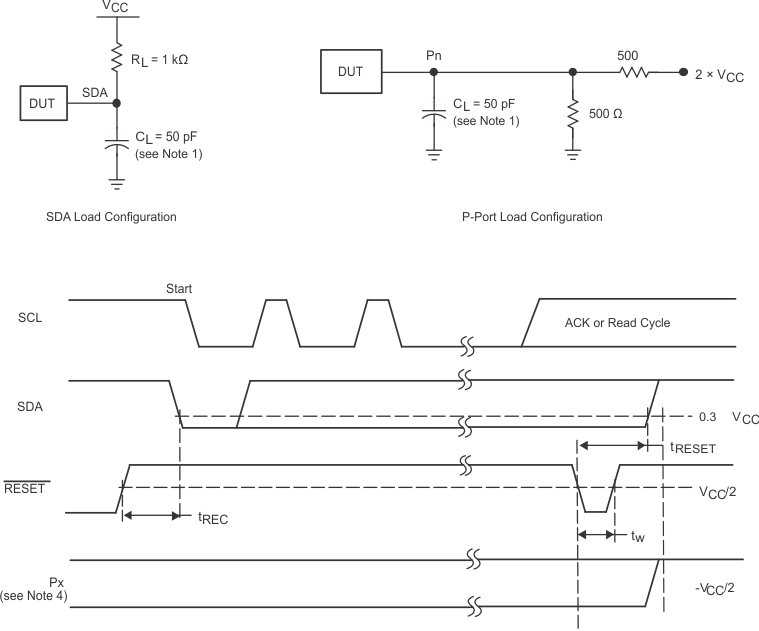

Figure 7-4 Reset Load Circuits and Voltage Waveforms
