9.1 Power-On Reset Requirements

In the event of a glitch or data corruption, TCA9539-Q1 can be reset to its default conditions by using the power-on reset feature. Power-on reset requires that the device go through a power cycle to be completely reset. This reset also happens when the device is powered on for the first time in an application.

The voltage waveform for a power-on reset is shown in Figure 9-1.

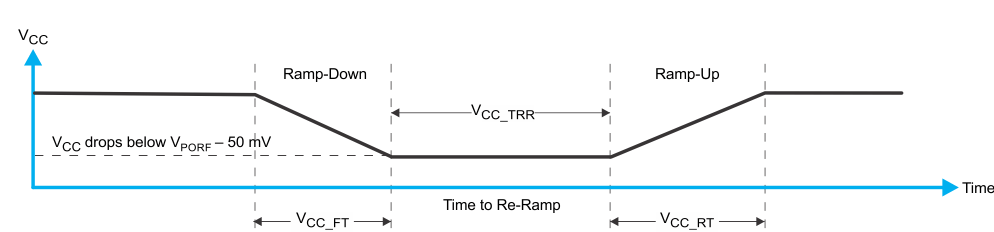

GUID-CFB5FD73-C7C0-4C7A-A125-55BEE23002A3-low.gifFigure 9-1 VCC is Lowered Below the POR Threshold, then Ramped Back Up to VCC

Table 9-1 specifies the performance of the power-on reset feature for TCA9539-Q1.

Table 9-1 Recommended Supply Sequencing And Ramp Rates (1)
PARAMETERMINTYPMAXUNIT
VCC_FTFall rateSee Figure 9-10.1ms
VCC_RTRise rateSee Figure 9-10.1ms
VCC_TRRTime to re-ramp (when VCC drops to VPOR_MIN – 50 mV or when VCC drops to GND)See Figure 9-12μs
VCC_GHThe level (referenced to VCC) that VCC can glitch down to, but not cause a functional disruption when VCC_GWSee Figure 9-21.2V
VCC_MVThe minimum voltage that VCC can glitch down to without causing a reset (VCC_GH must not be violated)See Figure 9-21.5V
VCC_GWGlitch width that does not cause a functional disruptionSee Figure 9-210μs
VPORFVoltage trip point of POR on falling VCC0.751V
VPORRVoltage trip point of POR on rising VCC1.21.5V
(1) TA = –40°C to +125°C (unless otherwise noted)

Glitches in the power supply can also affect the power-on reset performance of this device. The glitch width (VCC_GW) and height (VCC_GH) are dependent on each other. The bypass capacitance, source impedance, and device impedance are factors that affect power-on reset performance. Figure 9-2 and Table 9-1 provide more information on how to measure these specifications.

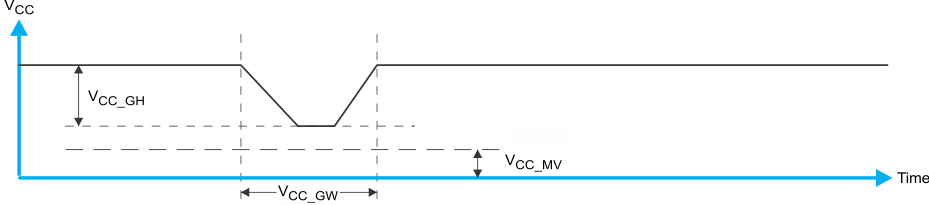

GUID-CE756D35-2D63-4E70-845E-01FA23BDEDF4-low.gifFigure 9-2 Glitch Width, Glitch Height, and Minimum Glitch Voltage

VPOR is critical to the power-on reset. VPORR is the voltage level at which the reset condition is released and all the registers and the I2C/SMBus state machine are initialized to their default states. The value of VPOR differs based on the VCC being lowered to or from 0. Figure 9-3 and Table 9-1 provide more details on this specification.

GUID-1EE3FBAF-4CDA-4948-A610-DF349B479218-low.gifFigure 9-3 VPOR
